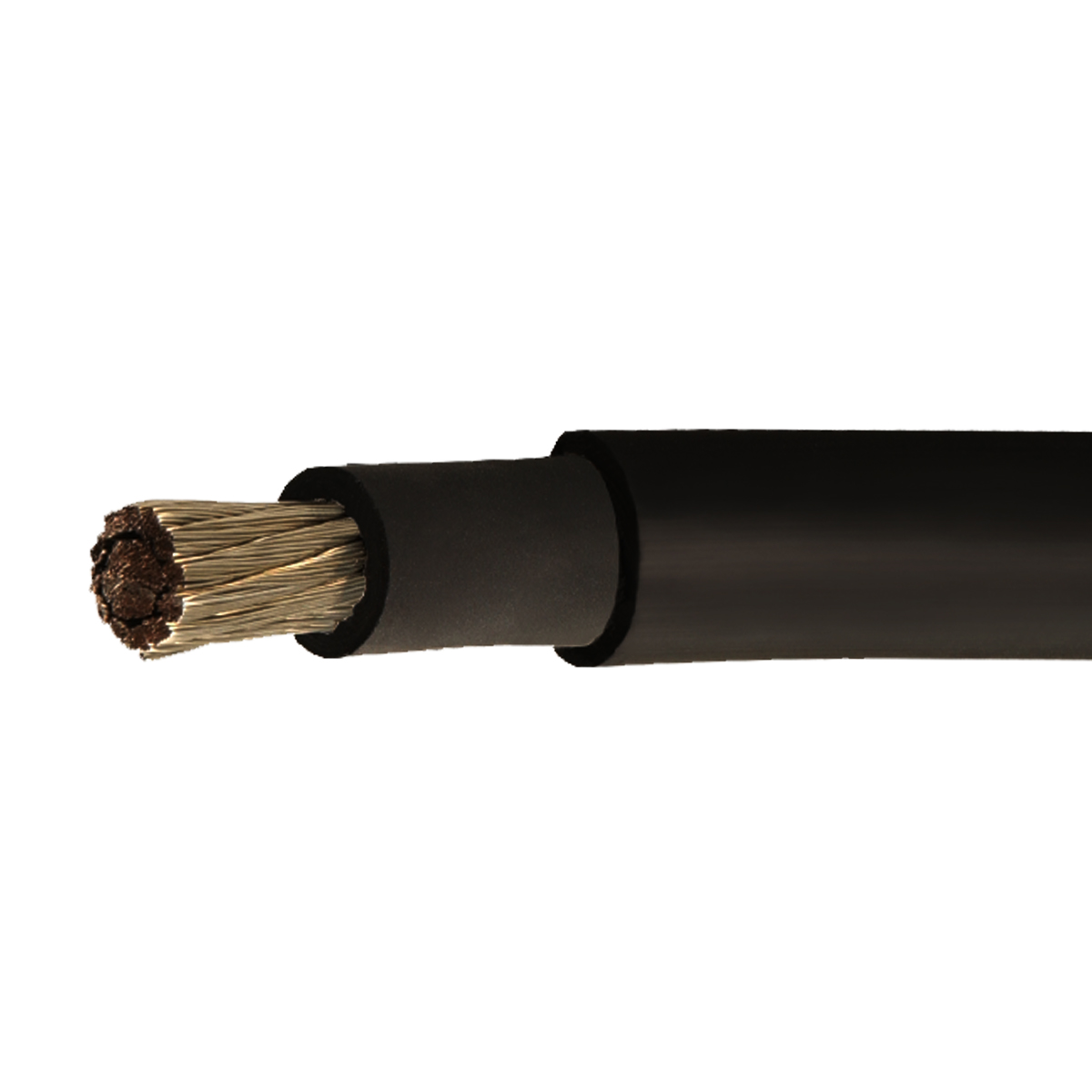

RHH-RHW DLO 600V-2000V diesel locomotive cable is used for soft and convenient motor and power line.This cable is also suitable for diesel generators, railways and transport vehicles, bulldozers, offshore drilling platforms, energy storage batteries, charging equipment wiring and size 1/0 AWG or more, according to the NEC pipeline/cable disc flexible wiring.

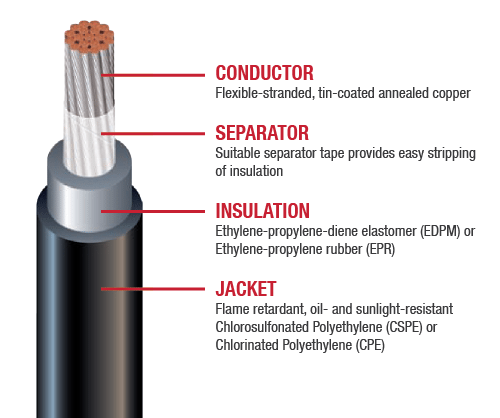

conductor |
Multi-strand Soft Tin-plated Copper Conductor |
Isolation belt (optional) |
An opaque isolation strip is located outside the conductor for easy stripping. |
insulation |
EPR (Ethylene propylene rubber) thermosetting material, 90 C |
sheath |
Heavy-duty, oil-proof CPE/CSPE |
colour |
Black, other colors are optional |
ICEA S-75-381,Portable and power feeder cables for mines and similar application environments
ASTM B-33, ASTM B-172 & ASTM B-174
UL 44Specific RHH-RHW characteristics
MSHA
Wire gauge |
Number of shares |
Nominal insulation thickness |
Nominal Jacket Thickness |
Nominal cable diameter |
|||
|
|
Mils |
Mm |
Mils |
Mm |
Inch |
Mm |
4 |
105 |
0.060 |
1.52 |
0.030 |
0.76 |
0.451 |
11.46 |
3 |
125 |
0.060 |
1.52 |
0.030 |
0.76 |
0.475 |
12.07 |
2 |
150 |
0.060 |
1.52 |
0.030 |
0.76 |
0.501 |
12.73 |
1 |
225 |
0.080 |
2.03 |
0.045 |
1.14 |
0.647 |
16.43 |
1/0 |
275 |
0.080 |
2.03 |
0.045 |
1.14 |
0.697 |
17.70 |
2/0 |
325 |
0.080 |
2.03 |
0.045 |
1.14 |
0.734 |
18.64 |
3/0 |
450 |
0.080 |
2.03 |
0.045 |
1.14 |
0.812 |
20.62 |
4/0 |
550 |
0.080 |
2.03 |
0.045 |
1.14 |
0.867 |
22.02 |
262.6 |
650 |
0.095 |
2.41 |
0.065 |
1.65 |
0.987 |
25.07 |
313.1 |
775 |
0.095 |
2.41 |
0.065 |
1.65 |
1.052 |
26.72 |
373.7 |
925 |
0.095 |
2.41 |
0.065 |
1.65 |
1.122 |
28.50 |
444.4 |
1100 |
0.095 |
2.41 |
0.065 |
1.65 |
1.197 |
30.40 |
535.3 |
1325 |
0.110 |
2.79 |
0.065 |
1.65 |
1.305 |
33.15 |
646.4 |
1600 |
0.110 |
2.79 |
0.065 |
1.65 |
1.397 |
35.48 |
777.7 |
1925 |
0.110 |
2.79 |
0.065 |
1.65 |
1.487 |
37.77 |
929.2 |
2300 |
0.110 |
2.79 |
0.065 |
1.65 |
1.594 |
40.49 |
1111 |
2750 |
0.125 |
3.18 |
0.065 |
1.65 |
1.756 |
44.60 |
