  • 75Ohm telecom cable 7/8 rf feeder cable

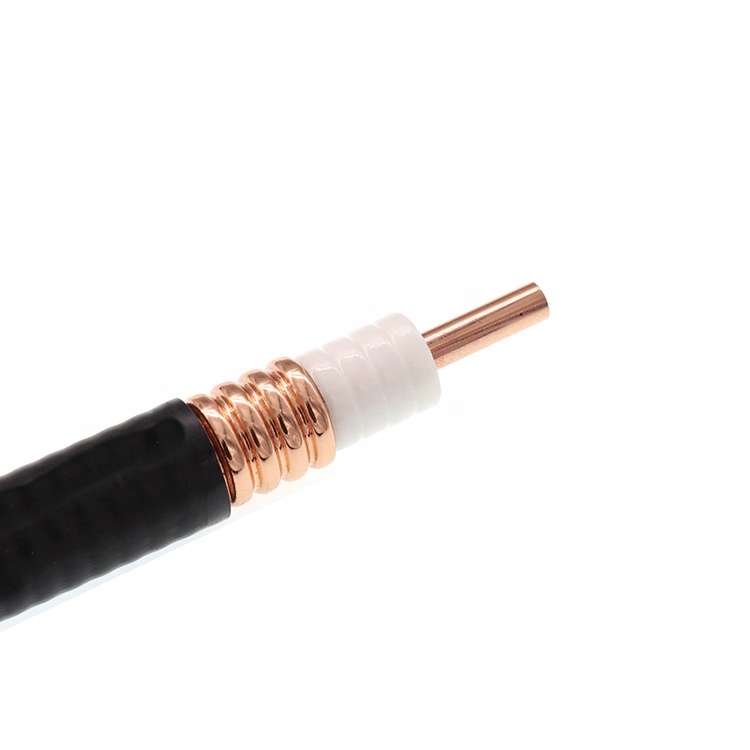

75Ohm telecom cable 7/8 rf feeder cable

75Ohm telecom cable 7/8 rf feeder cable

  • Product description: Because the 75Ohm telecom cable 78 rf feeder cable is hard, they are all used outdoors, for connecting 7/8 feeders and equipment for switching. coaxial cable main task is to effectively transmit sign
  • INQUIRY

      Because the 75Ohm telecom cable 78 rf feeder cable  is hard, they are all used outdoors, for connecting 7/8 feeders and equipment for switching. coaxial cable main task is to effectively transmit signal energy, transmit the signal power from the transmitter to the input of the transmitting antenna with minimal loss, or transmit the signal received by the antenna to the receiver input with minimal loss, while itself No spurious interference signals are generated, so the transmission line must be shielded.

Construction Spectification

Item

Material Diamenter (mm)
1. Inner Conductor Copper Tube 9.0
2. Insulation Foamed PE 22.7±0.20
3. Outer Conductor Annular Corrugated Copper Tube 24.9±0.25
4. Jacket Black PE 27.5±0.25

Electrical Characteristics
Capacitance (pF/M)   76
Impedance (Ohm)   50
Velocity (%)   88
Peak Power Rating (KV)   90
RF Peak Voltage (KV)   3.2
Insulation Resistance (MΩ.km)   >5000
Cut-off Frequency (GHz)   5.2
Inner Conductor DC Resistance (Ω/km)   2.2
Outer Conductor DC Resistance (Ω/km)   1.85
VSWR≤(Return loss≥dB)
800MHZ-1000MHZ   1.15
1700MHZ-2500MHZ   1.20
2500MHZ-3000MHZ   1.20
