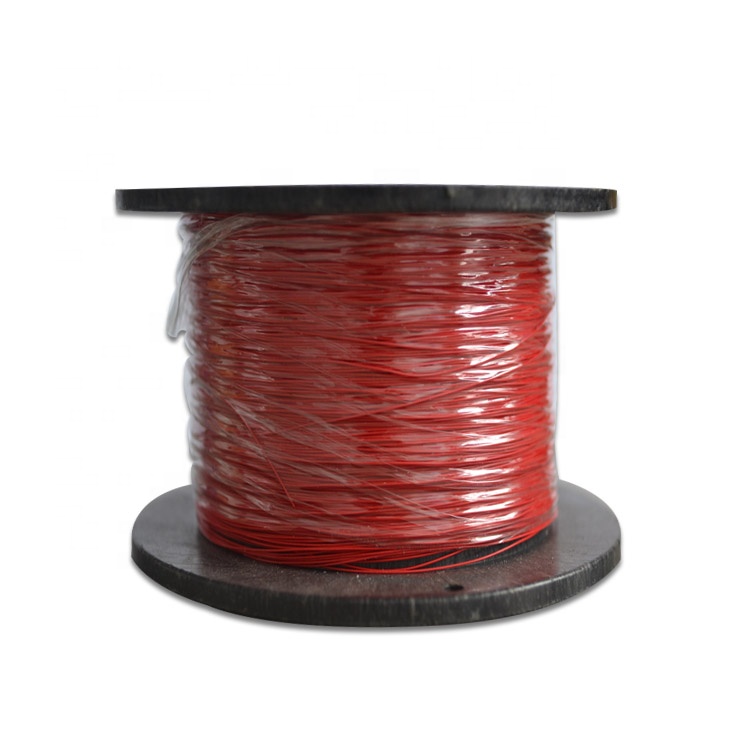

200C 600V FEP Insulated AF200 High Temperature Teflon Cable

AF200 High Temperature Teflon Cable
Product description: 200°C 600V FEP Insulated AF200 High Temperature Teflon Cable has excellent corrosion resistance, oil resistance, strong acid, strong alkali resistance, strong oxidant, etc.
INQUIRY

200°C 600V FEP Insulated AF200 High Temperature Teflon Cable has excellent corrosion resistance, oil resistance, strong acid, strong alkali resistance, strong oxidant, etc.; High Temperature Teflon Cable has excellent electrical insulation performance, high voltage resistance, low frequency loss, no moisture absorption, large insulation resistance; excellent flame resistance and resistance. Aging performance and long service life.
200°C 600V FEP Insulated AF200 High Temperature Teflon Cable Features:
1, rated voltage: 600V
2, working temperature: -80 ~ 250 ° C; short time can withstand 300 ° C.
3. Conductor: solid or stranded silver or nickel plated copper wire
4. Insulation: PFA Teflon

5, color: red / yellow / blue / white / black / yellow green / brown / orange / purple / green / etc.

Nominal cross section (mm2)	Conductor Structural Element/Line Diameter (mm)	Insulation thickness (mm)	Average Outer Diameter (mm)	20 DC Resistance of Conductor at Temperature (_/km)	Packing Length (m)
0.014	7/0.05	0.15	0.45	1343	500
0.035	7/0.08	0.15	0.60	525	500
0.05	7/0.10	0.15	0.60	330	500
0.08	7/0.12	0.20	0.78	227	500
0.12	7/0.15	0.20	0.85	150	500
0.20	7/0.20	0.25	1.10	83.5	200
0.35	19/0.16	0.25	1.30	49.5	200
0.50	19/0.18	0.25	1.40	36.0	200
0.75	19/0.23	0.25	1.70	22.7	200
1.0	19/0.26	0.25	1.80	19.0	200
1.20	19/0.28	0.30	2.0	15.3	200
1.50	19/0.32	0.30	2.20	11.7	200
2.0	19/0.37	0.30	2.45	9.45	100
2.5	19/0.41	0.40	2.95	6.86	100
4.0	37/0.37	0.40	3.40	4.51	100
6.0	37/0.45	0.50	4.20	3.05	100
8.0	133/0.28	0.50	5.20	2.16	100
10	133/0.32	0.50	5.80	1.68	100
16	133/0.39	0.60	7.00	1.13	100
20	133/0.45	0.60	8.0	0.886	100
25	196/0.40	0.6	8.8	0.734	100
35	494/0.30	0.7	10.4	0.511	100
50	396/0.40	0.8	12.2	0.358	100
70	551/0.40	1.0	14.6	0.270	100
95	760/0.40	1.2	17.2	0.210	100
