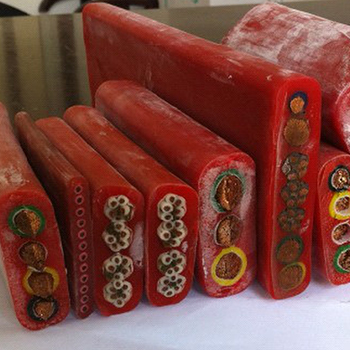

F46 insulated silicone rubber sheathed flexible flat cable YGCB-AF46RP

F46 insulated silicon rubber sheathed flexible flat cable
Product description: F46 insulated silicone rubber sheathed flexible flat cable YGCB-AF46RP is suitable for casting cranes, port machinery and trolley moving cables with AC rated voltage of 0.6/1KV and below.
INQUIRY

F46 insulated silicone rubber sheathed flexible flat cable YGCB-AF46RP is suitable for casting cranes, port machinery and trolley moving cables with AC rated voltage of 0.6/1KV and below. flexible flat cable has the characteristics of high temperature resistance, cold resistance, oil resistance, anti-corrosion, etc. The cable structure is soft and flat, convenient to lay, stable in electrical performance under high temperature and cold environment, anti-aging, long service life, etc., widely used in metallurgy and electric power. , petroleum, chemical, port and mobile equipment manufacturing industries.
F46 insulated silicone rubber sheathed flexible flat cable YGCB-AF46RP use characteristics
1. AC rated voltage: U0/U 0.6/1KV;
Working temperature: 180 ° C;
Ambient temperature: fixed laying -60 ° C;
2. The cable installation temperature is not below -25 °C.
F46 insulated silicone rubber sheathed flexible flat cable YGCB-AF46RP main technical indicators
1. Finished cable conductor (R type) DC resistance (in accordance with GB3956);
2. The insulation resistance at 20 °C is not less than 100MΩ/KM;
3, the finished cable is subjected to AC 50HZ 3.5KV/5min voltage test without breakdown

F46 insulated silicone rubber sheathed flexible flat cable YGCB-AF46RP code name meaning

Model	Model Product Name
YGGB	Flat flexible cable for silicone rubber insulation and sheath movement
YGCB-VFR	Insulated silicone rubber sheathed flat flexible cable
YGCB-AF46R	F46 insulated silicone rubber sheathed flat flexible cable
YGCPB	Silicone rubber insulated and sheathed tinned copper wire braided phase-shielded shielded flat flexible cable
YGCB-VFRP	Insulated silicone rubber sheathed tinned copper wire braided phase-shielded shielded flat flexible cable
YGCB-AF46RP	F46 insulated silicone rubber sheathed tinned copper wire braided phase-shielded shielded flat flexible cable

Basic model and name of silicone rubber flat cable

Code	Code mean
Y	Mobile series
G	Silicone rubber insulation or sheath
VF	Insulation or sheath
B	Flat type
P	Copper wire (tinned copper wire) shielding
F46	Polytetrafluoroethylene propylene F46
