Flat ribbon cable

  • Flat Rubber Cable 2*1.5mm2 H05RNH2-F Cable

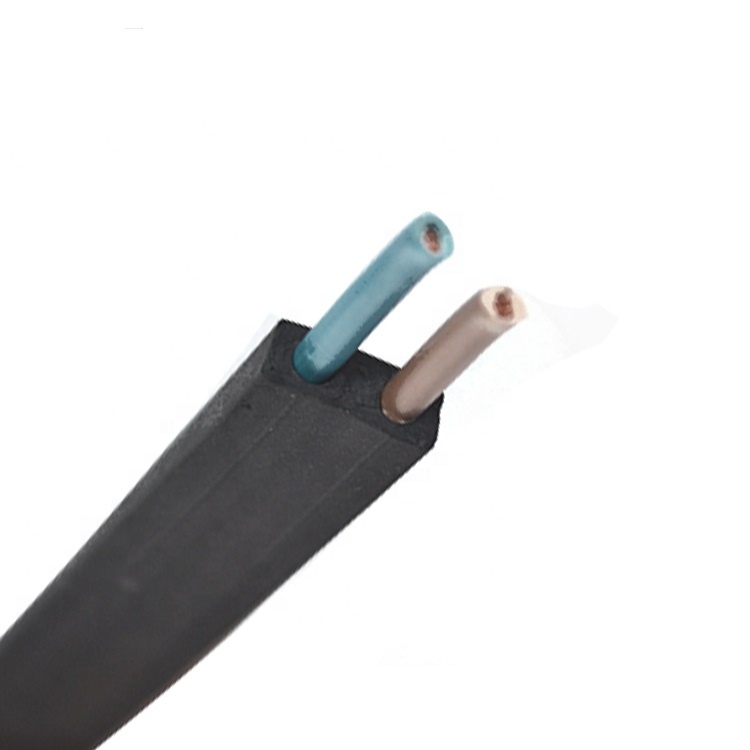

Flat Rubber Cable 2*1.5mm2 H05RNH2-F Cable

Flat Rubber Cable 2*1.5mm2 H05RNH2-F Cable

  • Product description: Flat Rubber Cable 2*1.5mm2 H05RNH2-F Cable are soft and flexible, resistant to weather, oil/grease, mechanical and thermal stress. Applications include processing equipment, mobile power, worksites, s
  • INQUIRY
Flat Rubber Cable 2*1.5mm2 H05RNH2-F Cable are soft and flexible, resistant to weather, oil/grease, mechanical and thermal stress. Applications include processing equipment, mobile power, worksites, stage and audiovisual equipment, port areas and dams. Flat Rubber Cable is also suitable for plaster fixtures, temporary buildings and homes, military camp drainage and sewage treatment, cold environments and harsh industrial environments.
Flat Rubber Cable 2*1.5mm2 H05RNH2-F Cable technical parameters:
- Operating voltage: 450/750 V
- Test voltage: 2500 V
- Dynamic bending radius: 6 x Ø
- Fixed installation bending radius: 4.0 x Ø
- Operating temperature range: -40o C to +95o C
- Temperature achievable in the event of a short circuit: +200 o C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩxkm
Flat Rubber Cable 2*1.5mm2 H05RNH2-F Cable structure:
- Complies with CE0295/IEC228 Class 6, multi-strand fine-twisted flexible oxygen-free fine copper wire conductor
-Special rubber core insulation, in accordance with DIN CE0282 (custom colors can be customized according to customer requirements)
- Color coding follows CE-0293-308
- Yellow-green grounding wire (three cores and three cores or more)
-Special rubber outer sheath (can be customized according to customer requirements)
