Thermocouple compensation cable

  • High temperature resistant fluoroplastic K type thermocouple compensation wire KX-FF/KX-FFP/KX-FPF
High temperature resistant fluoroplastic K type thermocouple compensation wire KX-FF/KX-FFP/KX-FPF

High temperature resistant fluoroplastic K type thermocouple compensation wire KX-FF/KX-FFP/KX-FPF

  • High temperature resistant fluoroplastic K type thermocouple compensation wire
  • thermocouple compensation wire
  • Product description: High temperature resistant fluoroplastic K type thermocouple compensation wire KX-FF/KX-FFP/KX-FPF function is to extend the thermal electrode, that is, the temperature measurement system formed by th
  • INQUIRY

High temperature resistant fluoroplastic K type thermocouple compensation wire KX-FF/KX-FFP/KX-FPF function is to extend the thermal electrode, that is, the temperature measurement system formed by the connection between the cold end of the moving thermocouple and the display instrument. Fluoroplastic high temperature compensation wire and thermocouple compensation cable have good high temperature resistance, can work in the harsh environment with corrosive gas between -40 °C and 200 °C for a long time, and have acid and alkali resistance, oil resistance and resistance. The characteristics of aging can effectively ensure the connection between the thermocouple and the meter and transmit signals. Fluoroplastic high temperature compensation wire has been widely used in the field of temperature measurement in electric power, metallurgy, petroleum and chemical industry.

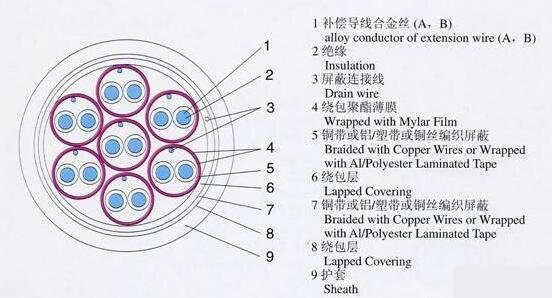

Compensation wire structure

High temperature resistant fluoroplastic K type thermocouple compensation wire model name

Model

Name

KX-FF

Fluoroplastic insulated fluoroplastic sheathed common-grade K-division thermocouple compensation cable

KX-FPF

Fluoroplastic insulated fluoroplastic sheathed copper wire braided sub-shield shielded common-grade K-division thermocouple compensation cable

KX-FPFP

Fluoroplastic insulated fluoroplastic sheathed copper wire braiding sub-shield and general shield common-grade K-division thermocouple compensation cable

KX-FFP

Fluoroplastic insulated fluoroplastic sheathed copper wire braided general shield common-grade K-division thermocouple compensation cable

KXS-FF

Fluoroplastic insulated fluoroplastic sheathed precision grade K thermocouple compensation cable

KXS-FPF

Fluoroplastic insulated fluoroplastic sheathed copper wire braided sub-shield precision K-division thermocouple compensation cable

KXS-FPFP

Fluoroplastic insulated fluoroplastic sheathed copper wire braided sub-shield and total shield precision grade K thermocouple compensating cable

KXS-FFP

Fluoroplastic insulated fluoroplastic sheathed copper wire braided general shield precision grade K thermocouple compensation cable

KX-FP3F

Fluoroplastic insulated aluminum/plastic composite tape sub-shield fluoroplastic sheathed ordinary grade K-index thermocouple compensation cable

KX-FP3FP3

Fluoroplastic insulated aluminum/plastic composite tape sub-shield and total shield fluoroplastic sheathed ordinary grade K-index thermocouple compensation cable

KX-FFP3

Fluoroplastic insulated fluoroplastic sheathed copper wire braided aluminum/plastic composite tape overall shield common grade K index thermocouple compensation cable

KXS-FP3F

Fluoroplastic insulated aluminum/plastic composite tape sub-shield fluoroplastic sheathed precision grade K thermocouple compensation cable

KXS-FFP3

Fluoroplastic insulated and sheathed aluminum/plastic composite tape overall shield precision grade K thermocouple compensation cable

KXS-FP3FP3

Fluoroplastic insulated aluminum/plastic composite tape sub-shield and total shield fluoroplastic sheathed precision grade K thermocouple compensation cable

Note:
1. Other types of compensation wires such as KC, JX, SC, EX, NC, TX, etc., only need to rewrite one of the models, such as: EX-G-VV, TX-H-FVP, etc.;
2. When the conductor is a multi-strand soft core, it should be indicated by the “R” after the original model, such as: TX-G-VVPR;
3. Polyethylene (Y) insulation and cross-linked polyethylene (YJ) insulation compensation cables are also available upon request.
4. The compensation cable shielding layer can also be wrapped in a metal strip, such as: composite aluminum strip (P3), composite copper strip (P2);
5, need flame retardant compensation cable, should be added "ZR-" before the original model.
6. For armored type compensation cable, add “-22” after the original model to indicate steel belt armor; add “-32” for steel armor.
Want to knowThermocouple compensation wire type and alloy wire material,please click it.
