Thermocouple compensation cable

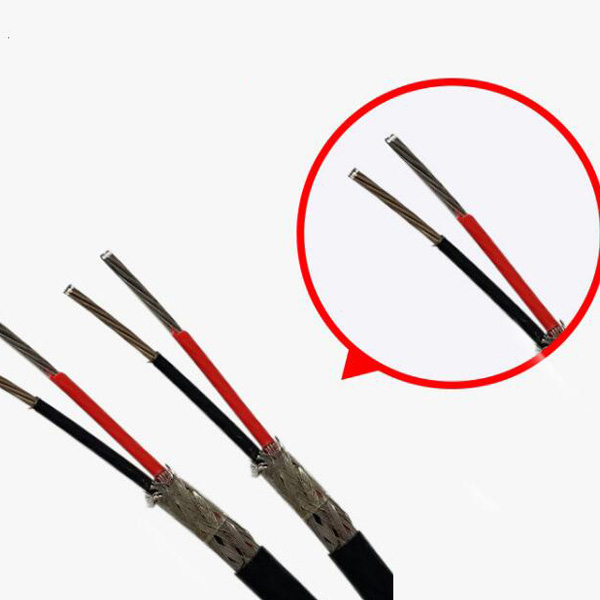

Fluoroplastic insulated PVC sheathed copper wire braided shield K type thermocouple compensation wire KX-FVP

The thermocouple compensation wire must be correctly selected according to the type of thermocouple used and the occasion used. Fluoroplastic insulated PVC sheathed copper wire braided shield K type t
Product description: The thermocouple compensation wire must be correctly selected according to the type of thermocouple used and the occasion used. Fluoroplastic insulated PVC sheathed copper wire braided shield K type t
INQUIRY

The thermocouple compensation wire must be correctly selected according to the type of thermocouple used and the occasion used. Fluoroplastic insulated PVC sheathed copper wire braided shield K type thermocouple compensation wire KX-FVP is a common high temperature resistant compensation wire.

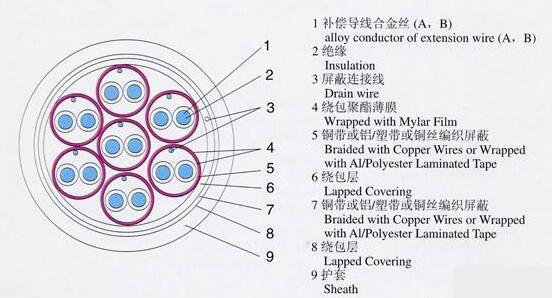

Thermocouple compensation wire structure

Product model: KX-FVP
Product abbreviation: compensation wire for K-index thermocouple
Conductor material: alloy conductor
Insulation material: fluoroplastic insulation
Core color: 5 colors within the core, 5 cores or more black body white number,
Structure: Stranded type
Shielding material: copper wire braided shield
Sheath material: PVC sheath
Flame retardancy: in accordance with IEC 60332
Minimum bending radius: cable outer diameter * 8 times
Long-term working temperature should be no higher than +200 °C
Long-term working temperature should not be lower than -20 °C
Strong anti-electromagnetic interference capability
Cable appearance: rounded (flat cable is flat)
Printing requirements: cable outer sheath surface printing: factory name, model, specification, voltage, meter
Fluorine plastic insulation K index thermocouple compensation wire common model
KX-FV
Fluoroplastic insulated 105°C PVC sheathed common grade K thermocouple compensation cable
KX-FPV
Fluoroplastic insulated 105°C PVC sheathed copper wire braided sub-shield shielded common-grade K-division thermocouple compensation cable
KX-FPVP
Fluoroplastic insulated 105°C PVC sheathed copper wire braiding sub-shield and general shield common-grade K-division thermocouple compensation cable
KX-FVP
Fluoroplastic insulated 105°C PVC sheathed copper wire braided general shield compensation cable for ordinary grade K index thermocouple
KXS-FV
Fluoroplastic insulated 105°C PVC sheathed precision grade K thermocouple compensation cable
KXS-FPV
Fluoroplastic insulated 105°C PVC sheathed copper wire braided sub-shield precision K-division thermocouple compensation cable
KXS-FPVP
Fluoroplastic insulated 105°C PVC sheathed copper wire braided sub-shield and total shielded precision K-index thermocouple compensation cable
KXS-FVP

Fluoroplastic insulated 105°C PVC sheathed copper wire braided general shield precision grade K thermocouple compensation cable

You can refer to this file about Thermocouple compensation wire introduction sample.
