Marine cable

Marine Radio Frequency Cable

Marine Radio Frequency Cable
Marine Cable
Product description: Marine Radio Frequency Cable is used for the connection between high frequency signal equipments and high frequency signal equipments to the ground on various ships
INQUIRY

Marine Radio Frequency Cable is used for the connection between high frequency signal equipments and high frequency signal equipments to the ground on various ships, offshore platform and other buildings above water. eg. Marine Cable is used for the connection with wireless and radar equipments.

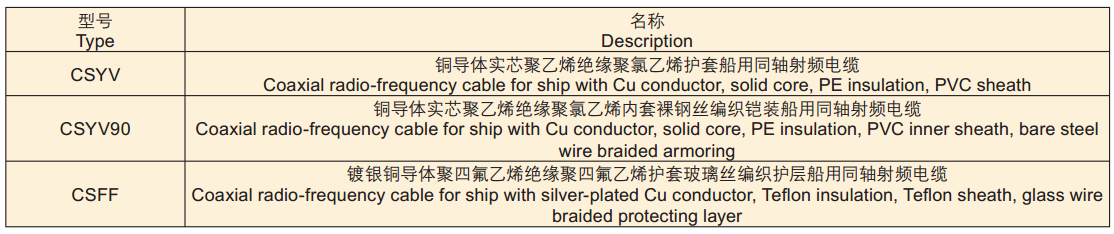

Type and Description

Type compiling and Letter meaning
Serial number of RF cable for ship………………………CS
Cu conductor…………………………………………T(omitted)
PE insulation……………………………………………………Y
Te fl on insulation or sheath …………………………………F
PVC sheath ……………………………………………………V
Note:“ F”can also be used to stand for Teflon plus glass wire impregnated sheath.

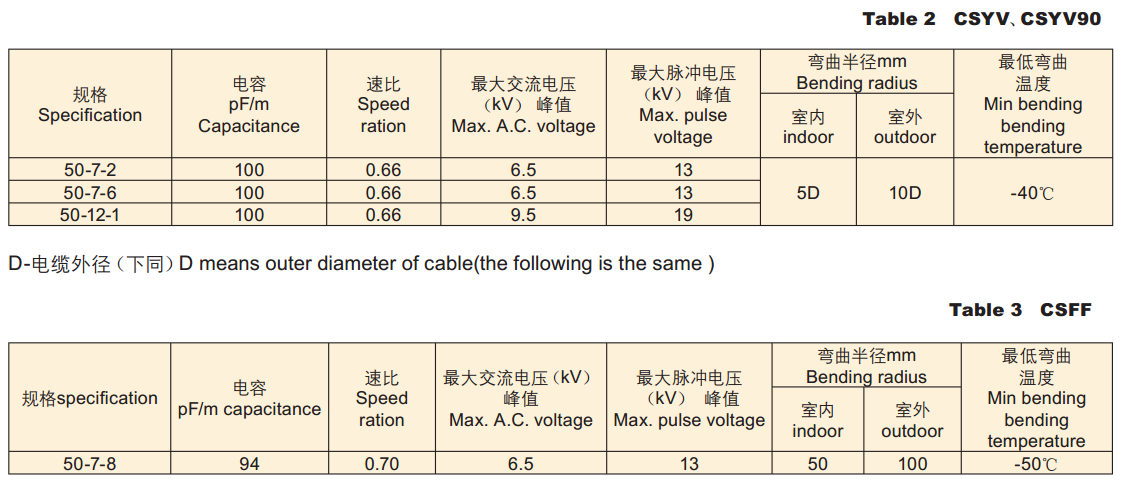

Performance for Usage

Marine Radio Frequency Cable

Delivery Requirements
1: Cable with solid conductor and PE insulation shall be no less than 100 m. And shorter cable shall be no less than 10 m.
2: Cable with solid conductor and Teflon insulation shall be no less than 45 m. And shorter cable shall be no less than 3 m.
3: Delivery quantity of shorter cables shall not exceed 15% of delivery length.

4: Delivery length of cable depends on both agreements with length error allowance of ±0.5%.

5,You are welcome to provide your requirements for marine grade wire. We produce them according to your requirements.
