High temperature cable

  • Mica Wrapping Glassfiber Braiding fire retardant high temperature Wire
  • Mica Wrapping Glassfiber Braiding fire retardant high temperature Wire

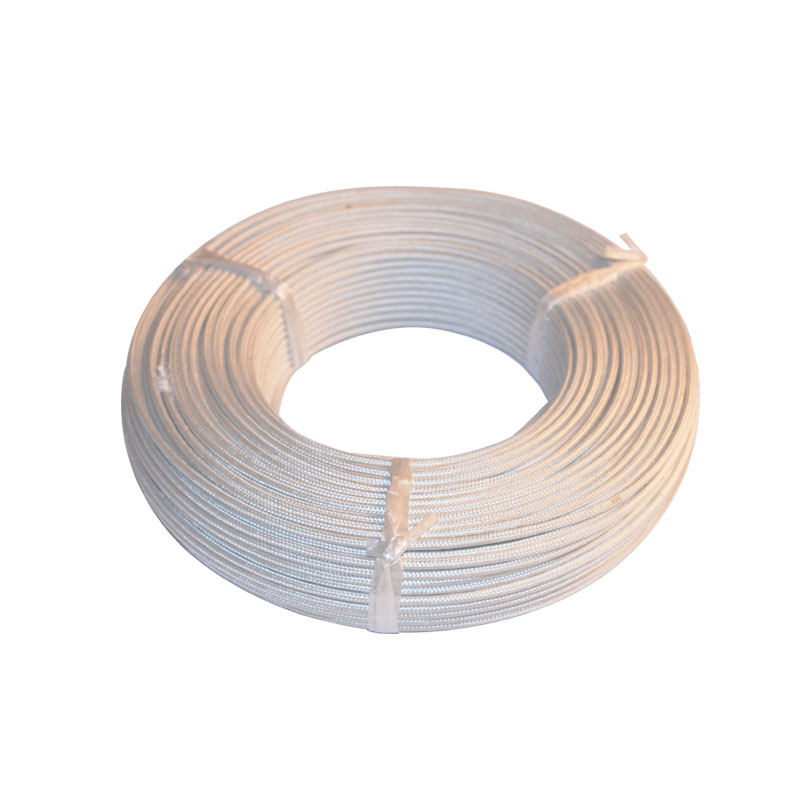

Mica Wrapping Glassfiber Braiding fire retardant high temperature WireMica Wrapping Glassfiber Braiding fire retardant high temperature Wire

Mica Wrapping Glassfiber Braiding fire retardant high temperature Wire

  • high temperature Wire
  • Glassfiber Braiding high temperature Wire
  • Product description: Mica Wrapping Glassfiber Braiding fire retardant high temperature Wire is metallurgy, thermal engineering, petroleum, chemical, natural gas, kerosene and other special environment, need fire performan
  • INQUIRY
Mica Wrapping Glassfiber Braiding fire retardant high temperature Wire is metallurgy, thermal engineering, petroleum, chemical, natural gas, kerosene and other special environment, need fire performance of all kinds of electrical equipment in the wire and cable.
Mica Wrapping Glassfiber Braiding fire retardant high temperature Wire features:
1. Rated voltage: 450/750v
2. Operating temperature: 500℃, 800℃
3, conductor: bare copper or nickel-plated copper wire stranded
4. Insulation: glass fiber + mica wrap + glass fiber braid
5. Sheath: glass fiber braid + glue

6. Color: red/yellow/blue/white/black/brown/green, etc

Mica Wrapping Glassfiber Braiding fire retardant high temperature Wire Technical parameters

Nominal Section
mm²
Conductor Structure
No./mm
Insulation Thickness
mm
O.D Control
mm
Max conductor resistance
20°c Ω/km
0.5  7/0.30 0.5 2.3±0.3 40.8
0.75  11/0.30 0.5 2.5±0.3 24.3
1.0  14/0.30 0.5 2.6±0.3 20.0
1.5  21/0.30 0.5 2.9±0.3 12.6
2.0  28/0.30 0.6 3.3±0.5 9.84
2.5  35/0.30 0.6 3.6±0.5 7.37
4.0  56/0.30 0.8 4.7±0.5 4.83
6.0  84/0.30 0.8 5.5±0.5 3.26
10.0  84/0.40 0.8 6.6±0.5 1.8
16.0  228/0.30 0.8 7.8±0.5 1.31
126/0.40 0.8 7.8±0.5 1.31
25.0  361/0.30 0.8 9.5±0.5 0.758
196/0.40 0.8 9.5±0.5 0.758
