High temperature cable

  • Mica tape braid high temperature nickel plated copper wire

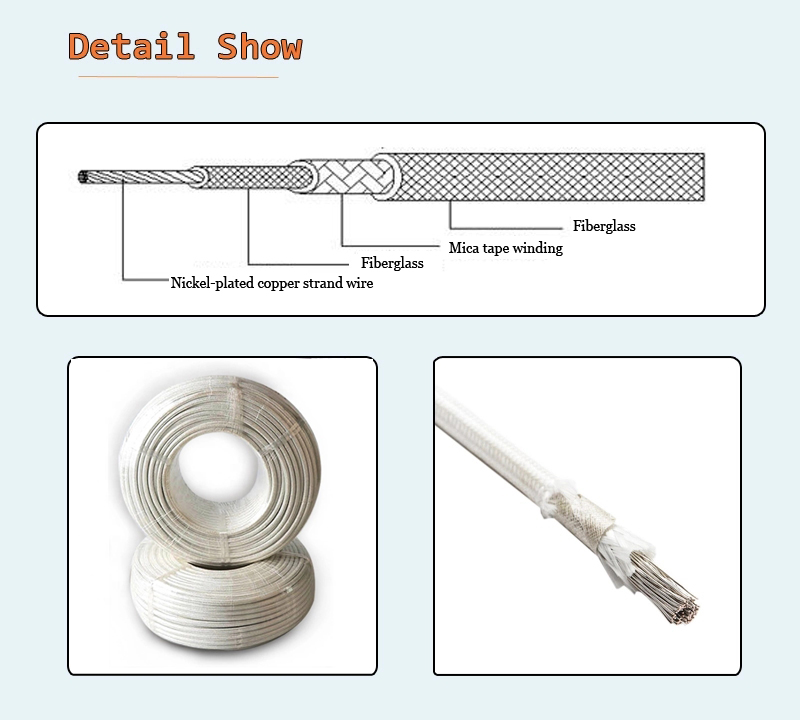

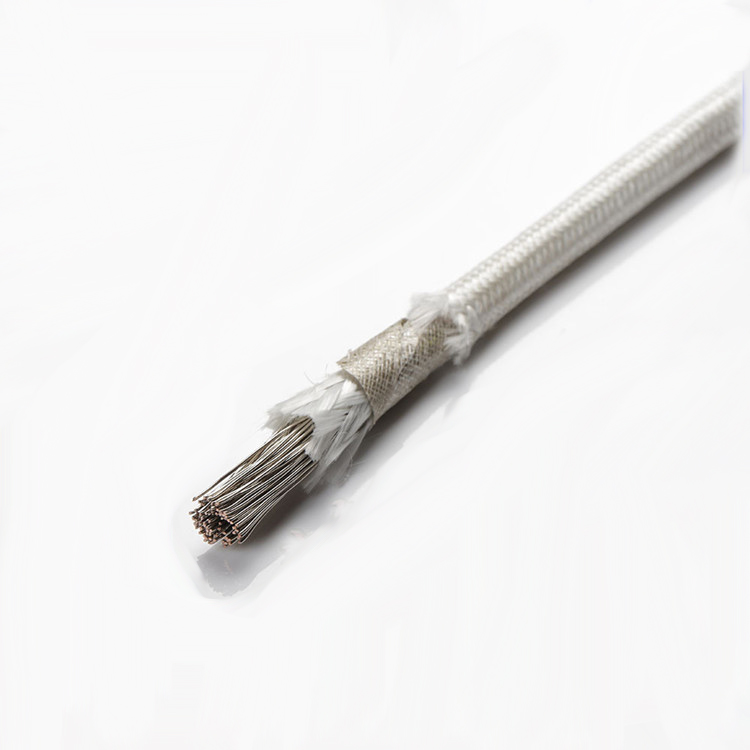

Mica tape braid high temperature nickel plated copper wire

Mica tape braid high temperature nickel plated copper wire

  • nickel plated copper wire
  • high temperature nickel plated copper wire
  • Product description: Mica tape braid high temperature nickel plated copper wire is applicable to the cables required for various electrical devices requiring fire protection performance in high temperature environment suc
  • INQUIRY

In many metal materials, nickel is considered to be a better material to resist accelerated oxidation in high temperature environment.The melting point of nickel is about 2 times that of copper, which can effectively protect the coated conductor at high temperature.After the copper conductor is plated with nickel, the resistivity is only slightly higher, but it is very soft and fatigue resistant.Mica tape braid high temperature nickel plated copper wire is applicable to the cables required for various electrical devices requiring fire protection performance in high temperature environment such as metallurgy, petroleum, chemical industry, oven, boiler, power plant, fire-fighting facilities, civil electric furnace, etc.The conductor shall be a single or stranded wire of 0.5-25mm2 nickel plated copper wire.

Mica tape braid high temperature nickel plated copper wire features:
The working voltage and AC rated voltage are below 600V, and the long-term allowable service temperature is below 500 ℃.Laying conditions: fixed laying relative temperature: 65% can be bent and burned with external flame.Product standard: gb12666.6-90 Q / 321281kla02-2012 Mica tape braid high temperature nickel plated copper wire parameters:

Nominal sectional area m

Number of conductor structure / single diameter

Maximum outer diameter of wire mm

Reference weight of finished product kg /

0.5

4/0.41

2.9

14

1.0

7/0.41

3.1

28

1.5

11/0.41

3.5

26

2.0

15/0.41

3.7

32.5

2.5

18/0.41

4.0

36.4

4.0

19/0.50

4.4

51.5

6.0

29/0.50

5.1

74.7

10.0

49/0.50

6.2

111.6

16.0

80/0.50

7.3

178.9

high temperature nickel cable
