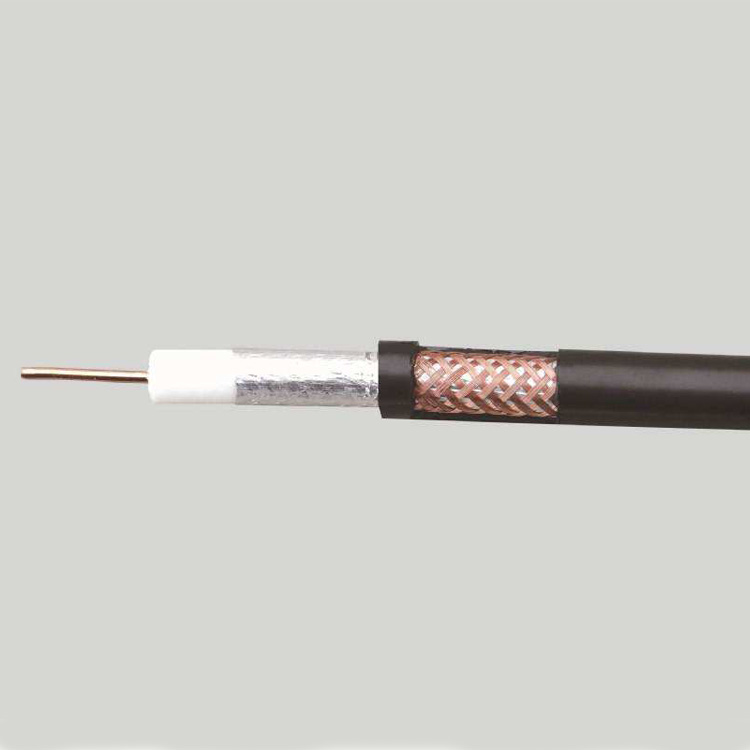

PE insulated RF coaxial cable SYV is used to transmit radio frequency signal for radio communication broadcasting equipments and concerned electric devices.
PE insulated RF coaxial cable Type Compiling and Code Meaning
RF coaxial cable………………………………………S
Copper conductor …………………………T(omitted)
PE solid core……………………………………………Y
PVC sheath ……………………………………………V
PE insulated RF coaxial cable Type-forming Method
PE insulated RF coaxial cable Working Condition
Working temperature: -30℃~70℃
Relevant humidity: 98% at 40±2℃. Temperature for installation is no lower than -15℃.
Min. bending radius: it will be no less than 5 times that of cable outer diameter for indoor usage, and no less than 10 times for outdoor usage.
PE insulated RF coaxial cable SYV Type and Description

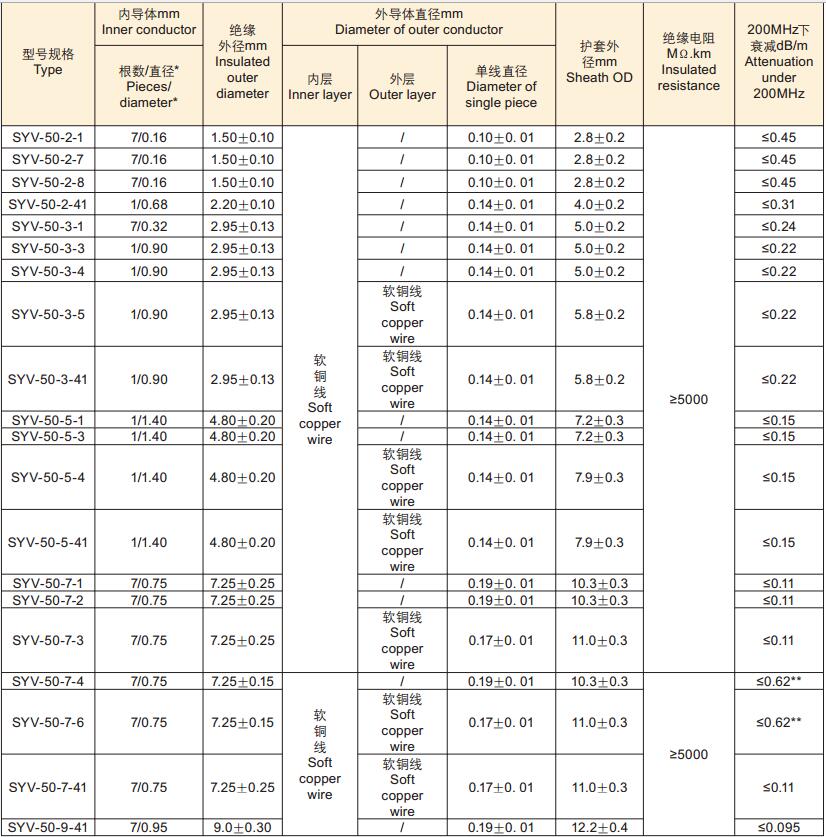

PE insulated RF coaxial cable Specification and Size
Note: characteristic impedance of SYV-50- is 50±2.5Ω. Capacitance isno more than 115ρ F/m.
Note: Characteristic impedance of SYV-75- is 75±3Ω. Capacitance is no more than 76ρ F/m.
