Flat ribbon cable

  • PVC elevator cable softness lift flat cable
  • PVC elevator cable softness lift flat cable
  • PVC elevator cable softness lift flat cable
  • PVC elevator cable softness lift flat cable
  • PVC elevator cable softness lift flat cable
PVC elevator cable softness lift flat cablePVC elevator cable softness lift flat cablePVC elevator cable softness lift flat cablePVC elevator cable softness lift flat cablePVC elevator cable softness lift flat cable

PVC elevator cable softness lift flat cable

  • lift flat cable
  • PVC elevator cable
  • Product description: PVC elevator cable softness lift flat cable adopts the special structure design, the service life is long, greatly improves the elevator production enterprise's operation efficiency. The elevator cont
  • INQUIRY
PVC elevator cable softness lift flat cable adopts the special structure design, the service life is long, greatly improves the elevator production enterprise's operation efficiency. The elevator control cable can provide overall electrical control in the case of long suspension length, and can withstand mechanical stress. The elevator cable can be used for long distance suspension because of the steel wire bearing cable core. This cable is used in elevator and conveyor systems. Install in dry, wet and rainy environment. The product is designed for use in extreme conditions and is ideal for conveyor systems and manual control systems. The external bearing core can be removed without damaging the cable. The load bearing core in the middle increases the tensile force.
PVC elevator cable softness lift flat cable features
This product has the characteristics of cold resistance, softness, wear resistance and oil resistance, etc. It is suitable for the power transmission lines, control, lighting and communication lines of mobile electric appliances such as driving, trolley and transmission machinery with the special requirements of cold resistance and oil resistance for rated ac voltage 0.6, 1KV and below.

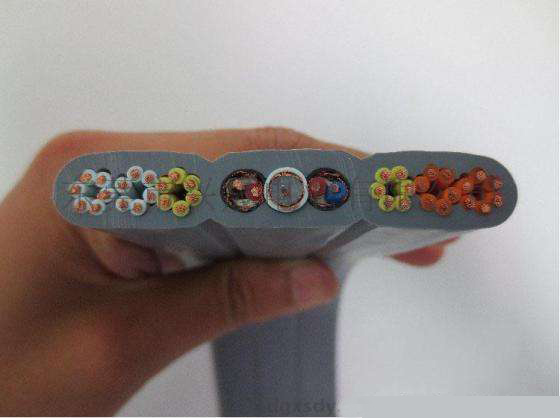

PVC elevator cable softness lift flat cable structure

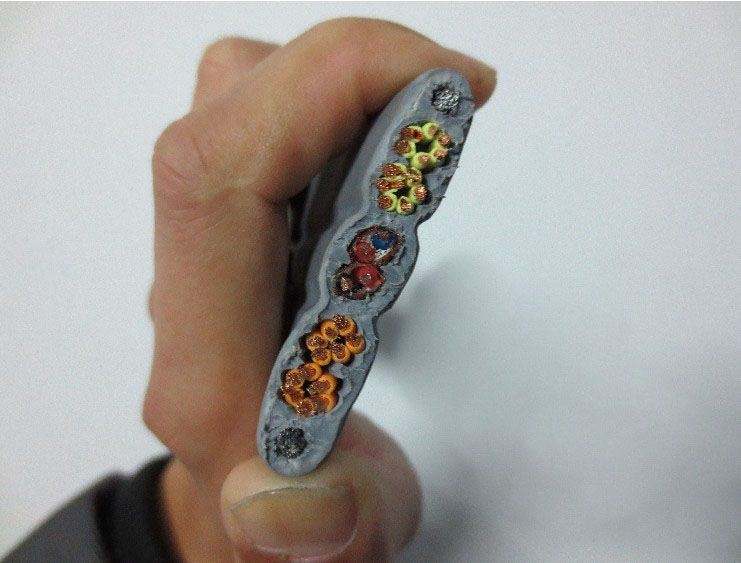

Cable structure with steel wire
Conductor: fine stranded oxygen-free bare copper wire, according to VDE0295CLASS 5 standard
Insulation: PVC insulation
Core color: number no
Core arrangement: one word arrangement or plum blossom arrangement
Steel wire: two high strength galvanized aviation wire (optional)
Jacket: 70℃, nitrile jacket black (RAL9005) gray (RAL7001)
In the field of power plants, we focus on the bucket turbine coil cable, dumper and garbage cable, towing cable and chain cable.
In the port field, we focus on the tire crane, bridge crane, gantry crane towing order, towing chain system cable, truck drum cable and hoist cable.
High flexible cable (PVC) (data transmission, single core, uv resistance, control and power, etc.)
High flexible towing chain cable (PUR) (wear-resisting and corrosion-resistant, wear-resisting and corrosion-resistant halogen-free, low-capacitance and halogen-free)
Feed sensor lead (high flexibility, double layer shielding, halogen-free and low capacitance
Anhui tiankang (group) shares co. LTD PVC elevator cable softness lift flat cable Examples of use:
Flat ribbon cable

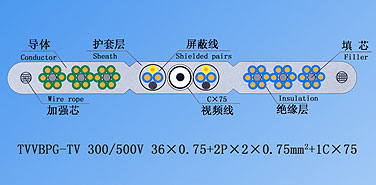

PVC elevator cable softness lift flat cable Description:
1. Insulation and sheath: PVC insulation and sheath;
2. Shielding wire: 2×0.75mm2, PVC insulation, semi-conductive shielding;
3. Coa×cable: coaxial cable impedance 75D, capacitance 567pf/m, attenuation;
4. Reinforcing core: 40mm, breaking force 1292kN;
5. Rated voltage: 300/500v;
6. Static bending test: 0.3m7; vertical combustion test: passed GB/ t18380.1-2001 test;
8. Product standards: refer to GB5023.6, iec 60227-6 and EN50214.
