Product description: Quick Heating Self Limiting Heating Cable has become the most common type of electric tracing in the world. They can be widely used in liquid transportation in pipelines and tank anti-freeze insulatio

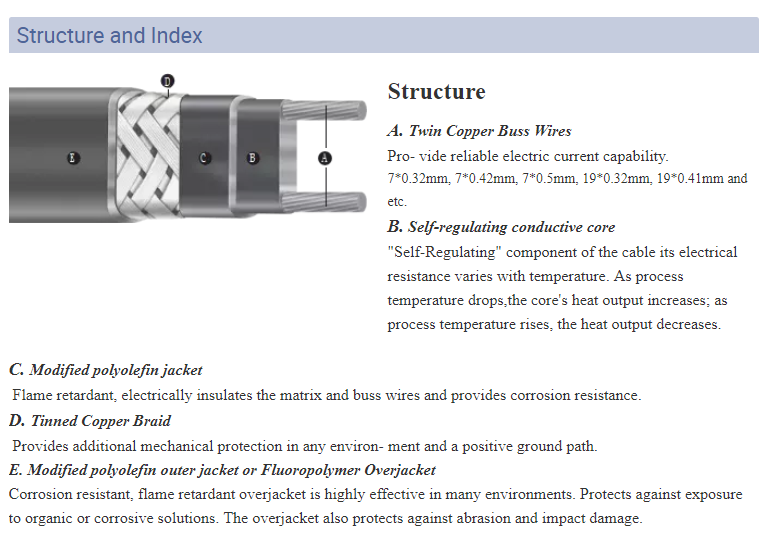

Quick Heating Self Limiting Heating Cable has become the most common type of electric tracing in the world. They can be widely used in liquid transportation in pipelines and tank anti-freeze insulation, maintain process temperature, heating highways, ramps, crosswalks, eaves and floors. A semiconductor polymer material is distributed between the two conductive cores of self-limiting electric tracing, and the outer part is composed of a polymer inner sheath, an alloy shielding net and a polymer outer sheath. When there is a current through the cable, the cable resistance increases as the temperature of the electrical wake increases. The result is that the output power of the electric wake decreases with the increase of its temperature. Since the heat tracing power varies with the temperature at various points in the electrical wake, the heated semiconductor core material behaves as a variable temperature resistance contrary to the trend of high/low heating temperature. Self-limiting electric wake will not overheat even if overlapped. No special design is required. The self-limiting electric tracing cable can be cut at any time in the field to exactly correspond to the actual laying length of the pipeline. Quick Heating Self Limiting Heating Cable structure 1. Copper conductor :7×0.50, 19×0.32, 19×0.41 2. Conductive plastic layer: ordinary PTC, flame retardant PTC, fluorine-containing PTC 3. Insulation layer: modified benign polyolefin, flame retardant polyolefin, fluorinated polyolefin, perfluorinated materials 4. Shielding layer: tin-plated soft round copper wire, covering 80% density 5. Jacket layer: modified benign polyolefin, flame retardant polyolefin, fluorinated polyolefin, perfluorinated materials 3. Construction temperature: minimum: -5℃ 4. Thermal stability: after 300 cycles from 15℃ to 99℃, the cable heat value remains above 90%. 5. Bending radius: 25.4mm-30mm at room temperature of 20℃ and 35.0mm at low temperature 6, insulation resistance: cable length of 100 m, the environment temperature 75 ℃, with 2500 VDC wave table 1 minute, the insulation resistance (wire) between the block and the minimum is 120 m Ω. 7. Starting current (10℃) 0.4a per meter
8. Maximum length: not more than 100 meters
Quick Heating Self Limiting Heating Cable suitable for temperature control, heat tracing, heat preservation and heating of pipes, equipment and containers, especially when materials are easy to decompose, deteriorate, crystallize, condense and freeze. Self Regulating Heating Cable is widely used in petroleum, chemical industry, electric power, metallurgy, light industry, food, freezing, construction, gas, agricultural and sideline products production, processing and other sectors.
