Self Regulating Heating Cable

Self Limiting Defrost Antifreeze Heating Cable

Product description: Self Limiting Defrost Antifreeze Heating Cable is composed of nano-conductive carbon particles and two parallel bus wires with insulation layer. Due to this parallel structure, all self-limiting heat
INQUIRY

Self Limiting Defrost Antifreeze Heating Cable is composed of nano-conductive carbon particles and two parallel bus wires with insulation layer. Due to this parallel structure, all self-limiting heat tracing wires can be cut into any length at the site, which can automatically limit the temperature of heating and automatically adjust the output power with the temperature of the heated body without any additional equipment. Can be arbitrarily cut short or in a certain length range of long use, and allow multiple overlapping without high temperature hot spots and burning.

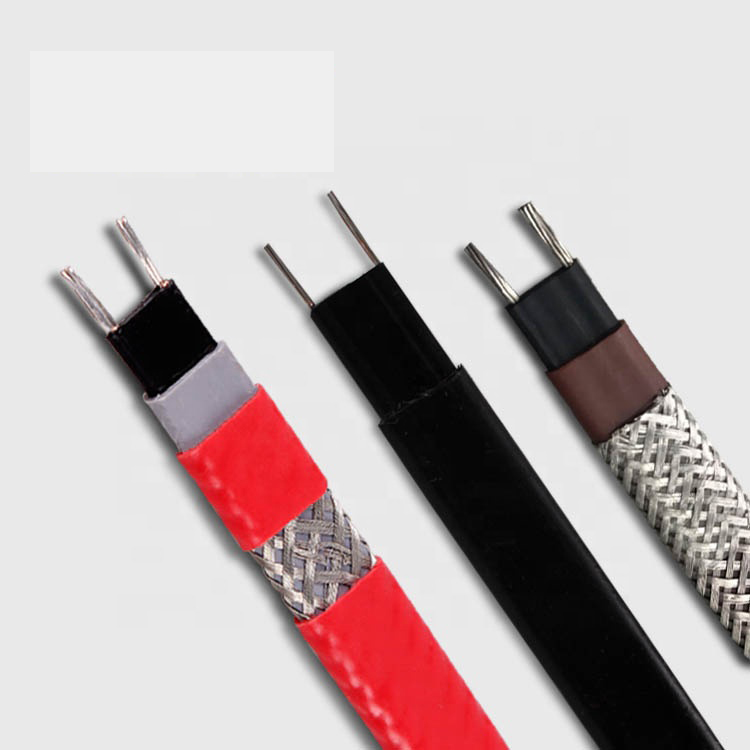

Cable structure		Specifications
1. Copper-core wire: double		1. Standard color: black, (custom)
2. Conductive heating element		2. Temperature range: Max. Working temperature 60±5°C
3. Insulation of heating element		3. Working voltage: 220~240V 50/60Hz
4. HD polyolefin outer jacket		4. Power: big orders can customize

Self Limiting Defrost Antifreeze Heating Cable Heating principle
Within each hot wire, the number of circuits between bus lines varies with the influence of temperature. When the temperature around the hot wire cools, the conductive plastic produces the contraction of micro molecules and the carbon particles connect to form circuits.

As the temperature rises, the conductive plastic expands with tiny molecules, the carbon particles gradually separate, causing circuits to break down, resistance to rise, and the tropical wake to automatically reduce power output.

Self Limiting Defrost Antifreeze Heating Cable

As the temperature cools, the plastic reverts to a state of micromolecular shrinkage, and the carbon particles connect accordingly, forming circuits that rise automatically with the tropical heat.
Self Limiting Defrost Antifreeze Heating Cable has the advantage that other heat tracing equipment does not have. The temperature it controls is neither too high nor too low, because the temperature is automatically adjusted.
Electric heat tracing cable products can be widely used in petroleum, chemical industry, electric power, medicine, machinery, food, shipping and other industries of pipeline, pump body, valve, tank tank and tank volume heat insulation, anti-freeze and anti-coagulation, is the most advanced and effective method for maintaining the temperature of infusion pipeline, liquid storage medium tank. Electric heat tracing is not only suitable for all kinds of places with steam heating, but also can solve the difficult problems of steam heating, such as: heat tracing of long-distance pipeline, heat tracing of narrow space; Heat tracing of equipment (such as pumps) without regular appearance; No steam heat source or heat tracing of pipes and equipment in remote areas; Heat tracing of plastic and nonmetallic pipes, etc.
