Self-regulating Water Pipe Freeze Protection Low Temperature Heating Cable

Low Temperature Heating Cable
Product description: The temperature of the low temperature Self-regulating Water Pipe Freeze Protection Low Temperature Heating Cable is 0-65 ° C. The principle is to install the heating element between the heat insulati
INQUIRY

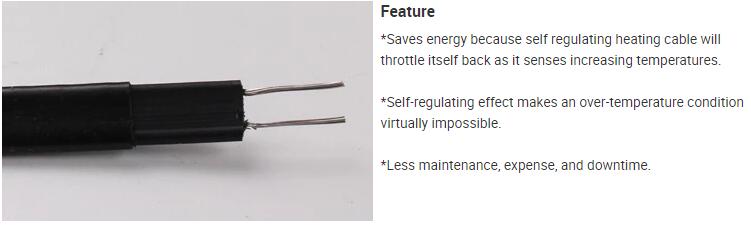

The temperature of the low temperature Self-regulating Water Pipe Freeze Protection Low Temperature Heating Cable is 0-65 ° C. The principle is to install the heating element between the heat insulation layer and the heat-receiving object, and dissipate the heat lost during the electric heat supplement storage to maintain the heat. The medium is within a certain temperature range. Self-regulating heating cable quick start at low temperature, uniform temperature, easy installation, simple maintenance, high automation level, low operating and maintenance costs. heat trace cable is safe and reliable, does not pollute the environment, has a long service life, and is not only used in ordinary areas, dangerous areas, but also in corrosion areas.

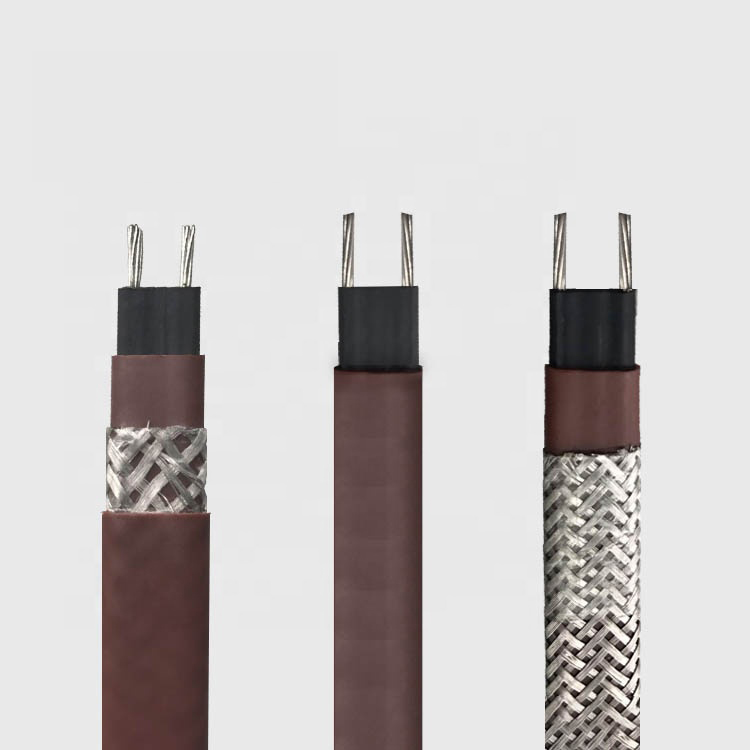

1 copper core wire: 7 × 0.50; 7 × 0.32; 19 × 0.41;
2 conductive plastic layer: ordinary PTC; flame retardant PTC; fluorine-containing PTC;
3 insulating layer: modified polyolefin; flame retardant polyolefin; fluorine-containing polyolefin; perfluorinated material;
4 Shield: tinned soft round copper wire (covering density 80%);

5 sheath layer: modified polyolefin; flame retardant polyolefin; fluorine-containing polyolefin; perfluorinated material;

Low Temperature Heating Cable

Self-regulating Water Pipe Freeze Protection Low Temperature Heating Cable Technical indicators:
1, standard color: black, gray low temperature electric heating
2, temperature range: the highest maintenance temperature of 65 ° C, the highest surface temperature of 70 ° C ± 5 ° C maximum temperature: modified polyolefin 105 ° C, flame retardant polyolefin 135 ° C fluorine-containing polyolefin 180 ° C, perfluorinated material 205 ° C
3. Construction temperature: Minimum: -60 °C
4, thermal stability: after cycling back and forth between 10 ° C and 99 ° C 300 times, the heat of the tropical heat is maintained above 90%
5. Bending radius: 25.4mm at 20°C at room temperature; 35.0mm at 30°C at low temperature
6. Insulation resistance: When the cable length is 100m and the ambient temperature is 75°C, shake it with 2,500VDC for 1 minute. The minimum value of insulation resistance (between conduction and shielding) is 1200MΩ.
Working voltage: 12V 24V 36V 110V 220V 380V
10°C output power: 1OW/m 15W/m 20W/m 25W/m
7,Explosion-proof mark: ExeIIT4
Self-regulating Water Pipe Freeze Protection Low Temperature Heating Cable is suitable for parts or places that need antifreeze, ice melting, snow and condensation, pipes, valves, pumps, tanks, tanks, reactors, etc. that are easy to liquefy, solidify, crystallize and viscous. Heat insulation, viscosity reduction and anti-blocking. Such as gas, chlorine, crude oil, heavy oil, cooking oil and fire hoses, especially when the above pipes are intermittently operated and cannot be completely emptied.
