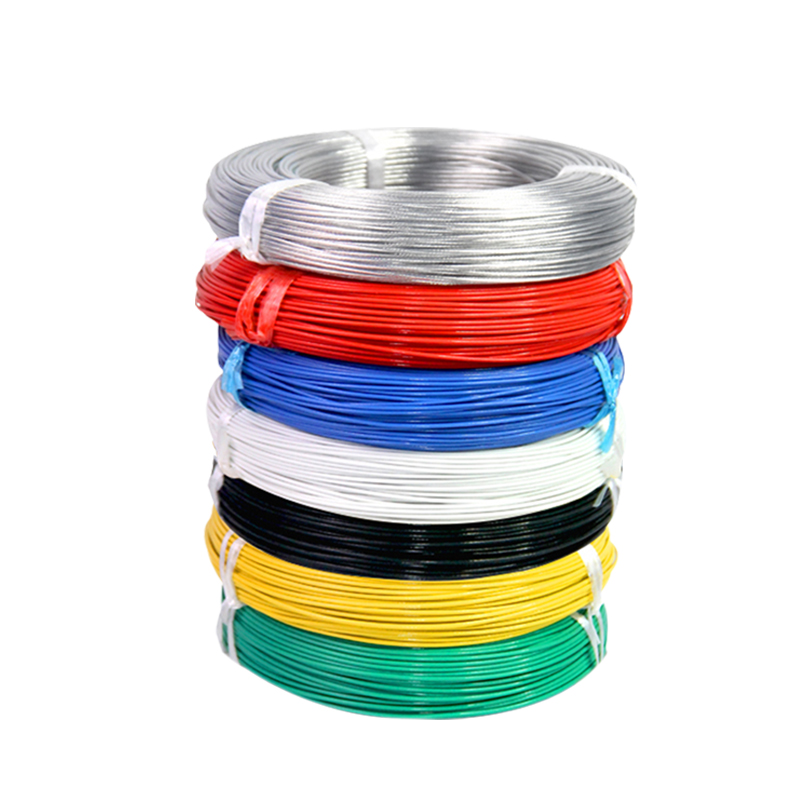

Silver-plated high temperature cable FF46-2

high temperature cable
Product description: Silver-plated high temperature cable FF46-2 wire core is made of high-purity oxygen-free copper silver-plated material, with thick plating, silver-white bright, low internal resistance, and low loss.
INQUIRY

Silver-plated high temperature cable FF46-2 wire core is made of high-purity oxygen-free copper silver-plated material, with thick plating, silver-white bright, low internal resistance, and low loss. The silver-plated wire core is more silver-white and brighter than the tin-plated wire. Compare the silver-plated wire and the tin-plated wire together. The tin-plated one is obviously darker, and the tin-plated one is relatively bright. Secondly, the silver-plated core is prone to oxidation and darkening when exposed to the air for a long time, because silver is easy to oxidize. The sheath is made of transparent Teflon material, which is resistant to high and low temperatures (-65℃～250℃), does not melt, burns, and is resistant to various acid and alkali media. It has excellent aging resistance, smooth appearance and high transparency.
Silver-plated high temperature cable FF46-2 is suitable for headphone cable, internal signal cable, signal cable between audio source amplifier, speaker cable, speaker cable, power cable, which can improve the overall sound quality to a certain extent, with high fidelity, high resolution, rich details and balanced tone. In the electronics industry, it can be used for temperature compensation wires, low temperature resistance wires, high temperature heating wires, aging resistance wires and flame-retardant wires; in the household appliance industry, it can be used for air conditioners, microwave ovens, electronic disinfection cabinets, rice burgers, electronic hot water bottles, and electric appliances. Internal wiring of heaters, electric ovens, electric frying pans, lamps and lanterns.
Silver-plated high temperature cable FF46-2 Features:
1. Rated voltage: 125V, 300V, 600V
2. Working temperature: -60～+250℃, can withstand temperature of 350℃ in a short time
3. Conductor: bare copper stranded wire, silver-plated copper stranded wire or nickel-plated copper stranded wire
4. Insulation: PTFE film

5. Color: red/yellow/blue/white/black/grey/brown/purple/green/etc

Silver-plated high temperature cable FF46-2 Specification, structure and technical parameters:

Cross sectional area (mm2)	Number of conductor structures / wire diameter (mm)	Insulation thickness (mm)			Wire outer diameter (mm)			20 DC resistance of conductor at ℃ (Ω / km)
Cross sectional area (mm2)	Number of conductor structures / wire diameter (mm)	125V	300V	600V	125V	300V	600V	20 DC resistance of conductor at ℃ (Ω / km)
0.013	7/0.05	0.10	0.15	0.25	0.38	0.48	0.70	1345
0.035	7/0.08	0.10	0.15	0.25	0.45	0.55	0.80	525
0.05	10/0.08	0.10	0.15	0.25	0.50	0.60	0.80	370
0.06	7/0.10	0.10	0.15	0.25	0.50	0.60	0.85	330
0.07	14/0.08	0.10	0.15	0.25	0.60	0.70	0.90	260
0.08	7/0.12 19/0.07	0.10	0.15	0.25	0.60	0.70	0.90	227
0.10	7/0.14 21/0.08	0.10	0.15	0.25	0.65	0.75	0.95	188
0.12	24/0.08	0.10	0.15	0.25	0.70	0.80	1.00	165
0.14	7/0.16 30/0.08	0.10	0.15	0.25	0.70	0.80	1.00	150
0.20	19/0.12 40/0.08	0.10	0.15	0.25	0.82	0.90	1.10	90.4
0.35	19/0.16 70/0.08		0.15	0.25		1.10	1.30	53.1
0.50	19/0.18 105/0.08		0.15	0.25		1.20	1.45	36
0.75	19/0.23		0.20	0.30		1.55	1.75	22.7
1.00	19/0.26		0.20	0.30		1.70	1.90	19
1.20	19/0.28		0.20	0.30		1.85	2.0	15.3
1.50	19/0.32		0.20	0.30		2.00	2.20	11.7
2.00	19/0.37		0.20	0.30		2.30	2.45	9.45
2.50	19/0.41 49/0.26			0.30			2.95	6.86
4.00	49/0.32			0.30			3.50	4.51
