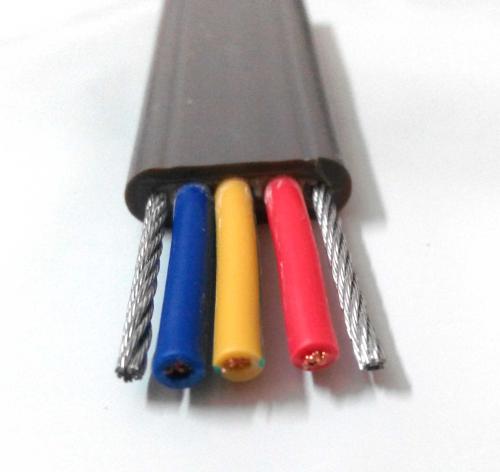

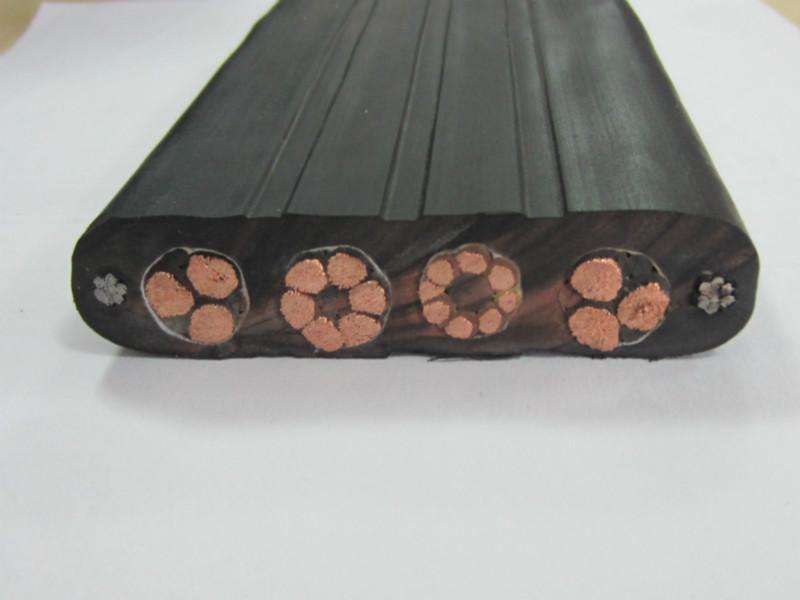

The rubber flat flexible cable is specially designed for the frequent bending of cables. It has the characteristics of easy arrangement, softness, no bending and long service life. It is suitable for lifting machinery, electric hoist and mobile equipment.anti-stretch silicone rubber flat cable with steel wire is wire-reinforced and has a certain tensile force, suitable for lifting machinery and mobile equipment.

anti-stretch silicone rubber flat cable with steel wire characteristics:
The new oil-resistant flexible special outer sheath can still be soft and flame retardant at -15 °C.
anti-stretch silicone rubber flat cable with steel wire structure:
Conductor: multiple strands of fine-twisted oxygen-free copper wire, in accordance with VDE0295CLASS 5
Insulation: color indication, in accordance with 2271IEC (brown, blue, black, yellow-green), black digital white number, in line with EN50214 (if the yellow-green grounding wire is required)
Sheath: Oil-resistant, flame-retardant, flexible PVC sheath or grey (RAL7001), black (RAL9005). It must be stated beforehand when used outdoors.
If the use of the crane is as follows:
1. When the lifting cable is arranged in a line:
(1) The free use length is greater than 35 meters;
(2) The running speed is greater than 1.6 m / s;
It should be considered to add bearing components to the cable. The bearing components are generally galvanized soft steel wire or fiber rope such as aramid yarn.
2. When the lifting cable is twisted and twisted:
(1) The free suspension length is greater than 80 meters;
(2) The running speed is from 4.0 m/s to 10.0 m/s;
Consideration should be given to adding load-bearing components to the cable, which are typically galvanized soft steel wire ropes.

If you need to customize the anti-stretch silicone rubber flat cable with steel wire, we can process according to your drawings, welcome to contact us.
