Flat ribbon cable

  • cold resistance Antifreeze flat cable
  • cold resistance Antifreeze flat cable
cold resistance Antifreeze flat cablecold resistance Antifreeze flat cable

cold resistance Antifreeze flat cable

  • cold resistance Antifreeze flat cable
  • Product description: cold resistance Antifreeze flat cable main mobile installation is applied to heavy machinery in low temperature occasions and environments to ensure that the equipment can still operate normally and s
  • INQUIRY

cold resistance Antifreeze flat cable main mobile installation is applied to heavy machinery in low temperature occasions and environments to ensure that the equipment can still operate normally and safely in low temperature and cold environment.

cold resistance Antifreeze flat cable mainly include:

1. Dingqing flat cable: -15~+70°C temperature range for mobile installation and use, it can remain soft in the range of -20 °C, mainly suitable for indoor environment in conventional industrial environment;
2. Cold-resistant special flat cable: -60 ° C low temperature environment can be applied, with excellent low temperature resistance, is the choice of high quality cable in high temperature requirements;
3. Polyurethane flat cable: It is installed in the temperature range of -40~+90°C, and the cable also has excellent wear resistance, oil resistance, water resistance and corrosion resistance. It is widely used in complex and harsh indoor environments and in outdoor environments. .

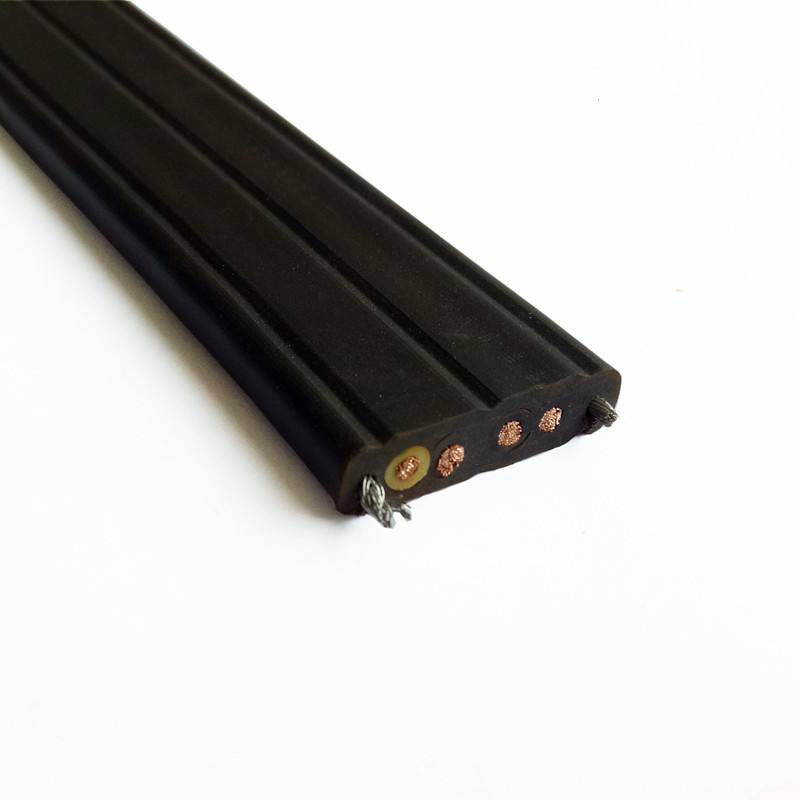

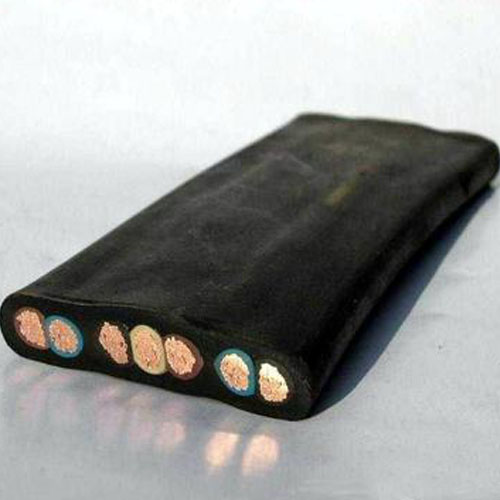

Cold-resistant flat cable design structure
Conductor: anaerobic bare copper wire fine stranded bundle;
Insulation: special mixed elastomer, NBR / automotive materials, etc.;
Core structure: one-line structure design / plum-shaped structure design;
Tensile element: galvanized tensile steel wire;
Sheath material: special modified elastomer nitrile / polyurethane / cold resistant elastomer material;
Cold-resistant flat cable selection instructions:
1. Low temperature range of the cable: It means the long working temperature range of the cable. The conventional Dingqing flat cable can be used for long-term mobile installation under -15 °C low temperature environment. We can order -60 °C low temperature environment. Mobile flat cable;
2. flat ribbon cable working environment: that is, the cable environment is a normal indoor environment, or a harsh indoor or outdoor environment such as oil pollution;
3. Whether it is necessary to bring steel wire, the steel wire rope on both sides of the cable is mainly used as the bearing component of the cable to enhance the tensile performance of the cable.
