Flat ribbon cable

  • fine wire copper conductor pvc insulation sheath pvc flat ribbon cable
fine wire copper conductor pvc insulation sheath pvc flat ribbon cable

fine wire copper conductor pvc insulation sheath pvc flat ribbon cable

  • fine wire copper conductor pvc insulation sheath pvc flat ribbon cable
  • flat ribbon cable
  • Product description: fine wire copper conductor pvc insulation sheath pvc flat ribbon cable is suitable for dry or wet indoor installations without free stress relief or forced guidance for free continuous reciprocating m
  • INQUIRY

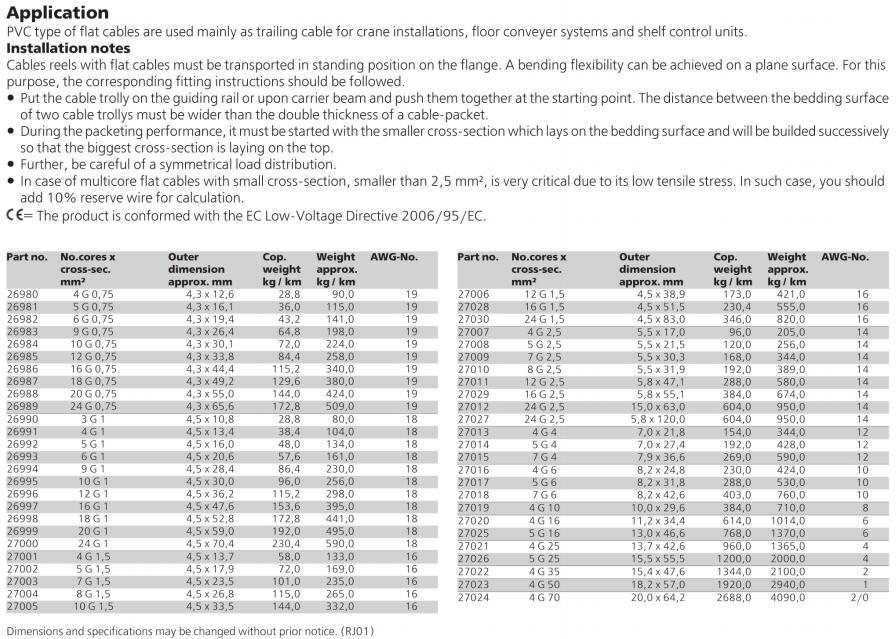

fine wire copper conductor pvc insulation sheath pvc flat ribbon cable is suitable for dry or wet indoor installations without free stress relief or forced guidance for free continuous reciprocating motion, for industrial use Frequent bending occasions, such as laser mechanical cutting machine, woodworking machinery, machine tool processing equipment, logistics conveying system, crane occasions, etc.

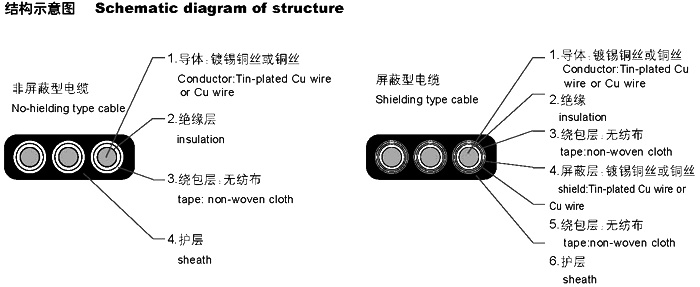

fine wire copper conductor pvc insulation sheath pvc flat ribbon cable structure

flat ribbon cable

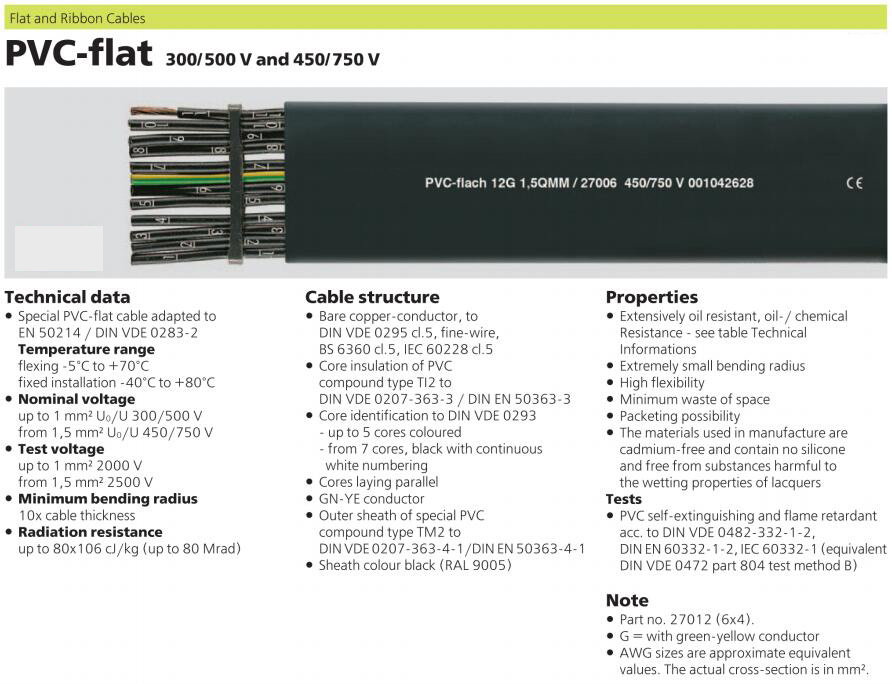

Conductor: 0.08mm or 0.1mm multi-strand fine-stranded oxygen-free bare copper wire, in line with VDE0295 CLASS 6 standard
Insulation: high quality domestic special PVC PVC (multiple colors available)
Core structure: anti-kink layering, grouped gap special filler
Inner sheath: polyester tape or non-woven tape
Shield: tinned copper wire braided shield, density 80% or more, (optional aluminum foil shield)
Sheath material: high quality domestic special flexible PVC polyvinyl chloride
Core diameter: not equal
Temperature range: -30 ° C ~ +80 ° C
Working voltage: 300/500V

Test AC voltage: 2000V

fine wire copper conductor pvc insulation sheath pvc flat ribbon cable

pvc flat ribbon cable

fine wire copper conductor pvc insulation sheath pvc flat ribbon cable is a high-flex cable that moves back and forth in the drag chain. Ordinary cables cannot be used in the drag chain. It is easy to break the core, the production process of TRVV, the structural characteristics of the twist pitch and the composition of the conductor, etc. It is obviously superior to the sheathed wire RVV. The main characteristics are oil resistance, UV resistance, weather resistance, cold resistance, wear resistance, ability to withstand heavy mechanical external forces, faster acceleration than moderate cables and stronger flexural resistance for continuous reciprocating installations, especially Frequent bending in industrial environments.
