  • Product description: welding cable is a neoprene compound jacket, which has heat resistance, oil resistance and non-flammability. The maximum operating temperature of the cable is 65 ° C. Particularly soft and has good be
  • INQUIRY

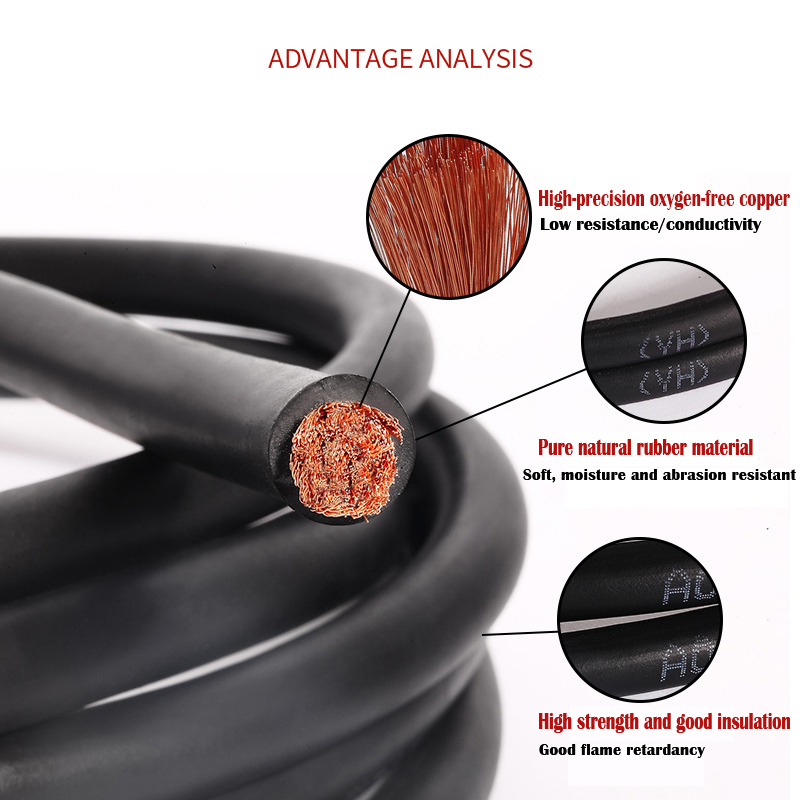

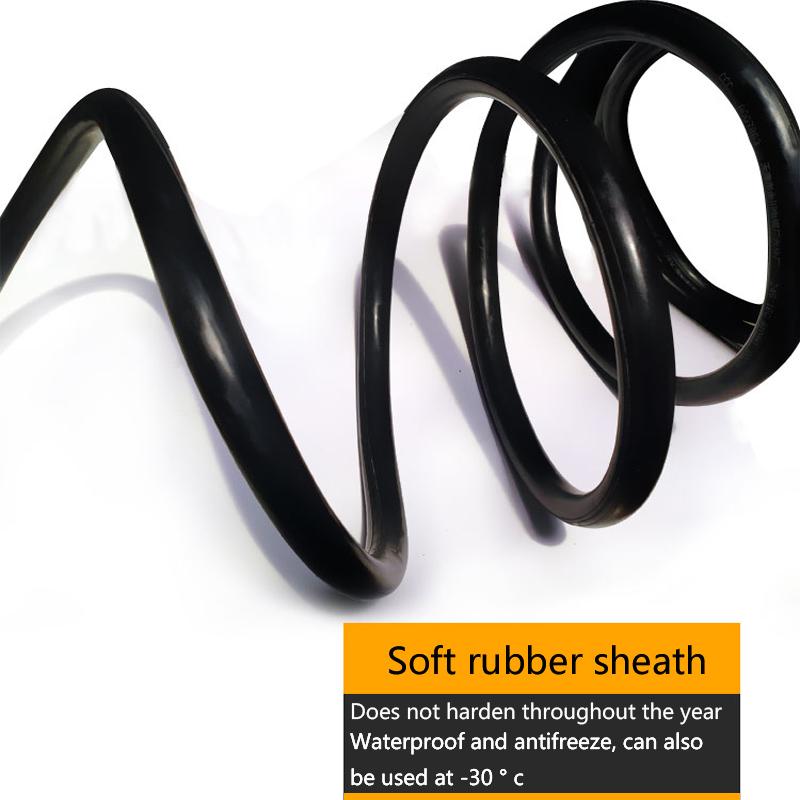

welding cable is a neoprene compound jacket, which has heat resistance, oil resistance and non-flammability. The maximum operating temperature of the cable is 65 ° C. Particularly soft and has good bending properties. The sheath material adopts natural rubber or neoprene mixture, which can be applied to different occasions.
welding cable Use characteristics:
The long-term allowable operating temperature of 2451EC81 (YH) and 2451EC82 (YHF) cable conductors should not exceed 65 ° C.
The long-term allowable working temperature of YH85 ℃ type cable conductor does not exceed 85 ℃.
YHF type has certain oil resistance and non-flame retarding characteristics.
The long-term allowable working temperature of EH cable conductors does not exceed 70 ° C. It has good abrasion resistance and also has certain oil resistance.

welding cable Overview: Welding machine cable is a special cable suitable for welding the secondary side of welding machines and connecting welding tongs. The rated voltage AC does not exceed 200V and the pulsating DC peak 400V. The structure is a single wire core, which is made of multiple strands of flexible conductors. The outer surface of the conductive wire core is wrapped with a heat-resistant polyester film insulation tape, and the outermost layer is made of an insulating and sheath made of rubber as a protective layer.

welding cable

welding cable Requirements:
(1) The electric welding machine cable works under the condition of low voltage (maximum voltage is 2000V) and large current, and it is required to have certain heat resistance.
(2) The long-term allowable working temperature of the cable should not exceed 65 ° C.
(3) The cable is frequently moved, twisted and cast, requiring softness and good bending performance.
(4) It is easy to be scratched and rubbed by sharp iron and steel components during casting, so it is required that the cable has good mechanical properties such as tear resistance and abrasion resistance.
(5) The use of environmental conditions is complex, such as sunlight, boiling water, contact with muddy water, engine oil, acid and alkali liquids, etc., which require certain weather resistance, oil resistance, and solvent resistance.
(6) Hot welding parts are sometimes encountered, which requires good heat distortion resistance.
(7) Frequent movement requires small outer diameter and light weight.
Because the electrical performance of this kind of welding cable is not high, and the use of environmental conditions is complex, it is not appropriate to meet various complex environmental factors in the structure. When using, pay attention to improve the use conditions to prevent external damage.
