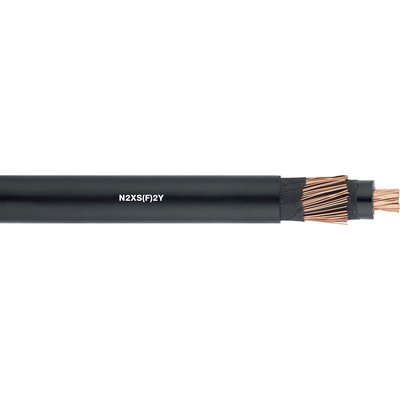

N2XS2Y, N2XS(F)2Y & N2XS(FL)2Y Cable, VDE, PE medium voltage cable acc. VDE 0276-620, with copper conductor, longitudinally water-tight, for fixed installation.Medium Voltage HDPE power distribution cable with particular application in wind energy installations. Longitudinally and radially sealed cables for aid protection against water ingress.

N2XS2Y, N2XS(F)2Y & N2XS(FL)2Y Cable Technical Requirements:

1,CONDUCTOR:Class 2 Copper Conductors Compression Stranded, acc.to IEC 60228.

2,INSULATION: Conductor semiconducting layer + XLPE insulation layer + insulation shielding layer three-layer co-extrusion.The insulation thickness meets the requirements in the table below.

3,INSULATION SCREEN:Copper tape shielding consists of a layer of overlapping soft copper tape. The average overlap rate between copper strips should be no less than 15% (nominal value).with longitudinally water-tight wrapping.

4,SCREEN:copper wires with two copper tape spiral ,then with longitudinally water-tight wrapping.

5,Outet Sheath:Flame retardant MV HDPE sheath sheath material, and the color is black. After extrusion, the cable should be round, smooth, and uniform in thickness. Its cross-section should be free of visible blisters, impurities, bubbles, unplasticized material, and charred materials.

6,PRINT LEGEND: Anhui Tiankang (Group) Shares Co., LTD.    Power Cable  1x95/E16mm²    8.7/15kV      0000m     Day/Month/Year

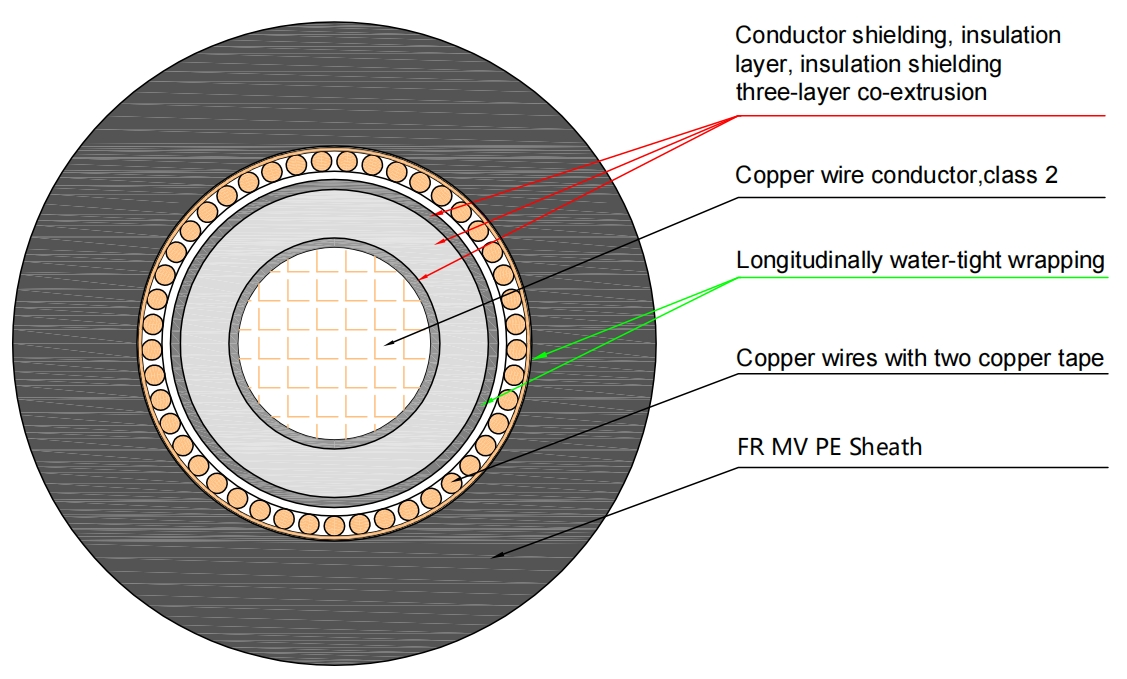

    7.CABLE SHAPE STRUCTURE:

4,N2XS2Y, N2XS(F)2Y & N2XS(FL)2Y Cable Technical Characteristic:

 1,The rated voltage:Uo/U 8.7/15kV.

 2,Test Voltage:30.5KV/5min.

 3,The long-term working temperature：-20-90°c.

 4,Min. Bending radius:15D.

 5,Flame retardant properties meet IEC60332-3-24.
