Marine control cable with PVC Insulation and Sheath
Marine control cable
Marine control cable with PVC Insulation and Sheath
Product description: Marine control cable with PVC Insulation and Sheath is used for the circuit insensitive to interference of AC rated voltage 250V or lower for ships, offshore platform and other building over water.
Marine control cable with PVC Insulation and Sheath is used for the circuit insensitive to interference of AC rated voltage 250V or lower for ships, offshore platform and other building over water.Used for control signal transmission of various ships and offshore or offshore buildings in the river. Working Condition 1: Long term working temperature allowed by cable is 60℃. 2: Min. bending radius of cable for installation is 6 times that of cable OD for cable with metallic shielding and armoring(D is for any value.)and 4 times that of cable OD for cable without armoring(D≤25 ); Min. bending radius of cable for installation is 6 times that of cable OD(D＞25 ). Note: D means outer diameter of cable

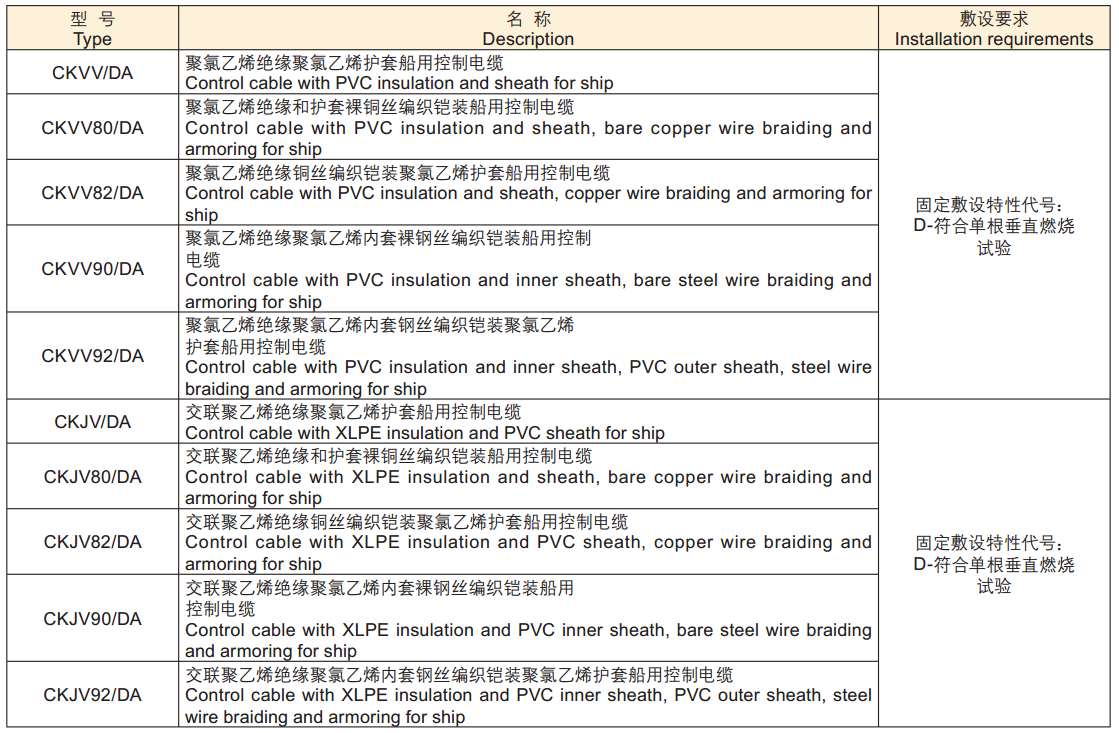

Type, Description and Installation Requirements

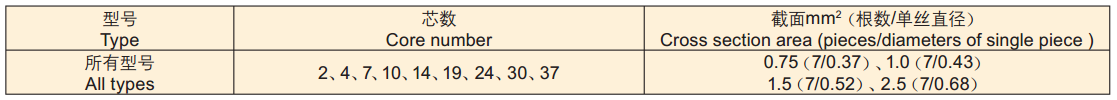

Specification Range
Technical Requirements 1: Cable should bear voltage test of AV 1500V or DC 3600V for 5min. 2: Vertical burning test performance for single piece shall meet the requirement of GB2951.19 standard. 3: Insulated resistance constant is no less than 36.7MΩ.km at 20℃ for CKV series cable and 3670MΩ.km at 20℃ for CKJ series cable. We specialize in the production of marine control cables, which can be produced according to the technical parameters you provide. Welcome to communicate.
