14AWG special PUR drum round reeling instrument cable

  • Product description: 14AWG special PUR drum round reeling instrument cable ​widely used in: high-speed towline system, machine moving parts connection, machine internal wiring.
  • INQUIRY
Polyurethane is specially designed for continuous bending and high-speed motion of towline cables. It is also suitable for internal wiring of the machine. 14AWG special PUR drum round reeling instrument cable widely used in: high-speed towline system, machine moving parts connection, machine internal wiring.
PUR polyurethane cable Polyurethane outer sheath material has abrasion resistance, bending resistance, oil resistance, water resistance, antibacterial, flame retardant and other characteristics, which makes this cable widely used in the fields of automation, industrial drag chains and industrial robots.
14AWG special PUR drum round reeling instrument cable features: high cost performance and long service life. The special PUR material makes it wear-resistant and highly stable. The special structure allows it to maintain good stability in medium and high speed towline applications.

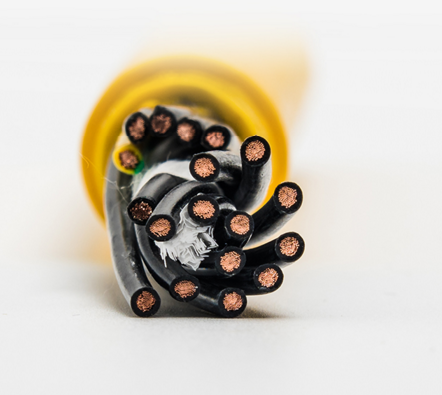

14AWG special PUR drum round reeling instrument cable structure
 Conductor: Bare copper, stranded fine copper wire stranded conductor, in accordance with DIN VDE0295 category 6 and IEC60228 category 6
 Insulation: Special PVC
Cores: black cores, numbered in sequence with white digits according to DIN VDE 0293, insulated wires with excellent pitch twisted composite cable
Shield: tinned copper wire braided shield
 Outer Sheath: Special PUR, extremely strong, resistant to tearing, abrasion and oil

 Outer Sheath Color: Grey

PUR instrument cable

 Special oil resistance, PUR self-extinguishing and flame retardancy. The test method is according to VDE0472 Part 804 and IEC60332-1. Product advantages:
1) Extremely thin conductors and special structural design and materials have enhanced their abrasion resistance and bending resistance. The special tensile reinforcement fiber inside greatly improves the product life and tensile resistance.
2) The shielding layer uses tinned copper wire to prevent oxidation; and the coverage rate is very close to 90%, reducing interference and preventing malfunctions during use

14AWG special PUR drum round reeling instrument cable Features

Characteristic
1. Flexible,bendable.
2.Tensile strength,tear resistance,stable performance.
3.Waterproof,oil resistance,UV resistance,weatherability.
Technical Specification
Voltage
U0/U450/750V
Test voltage
2500V
Minimum bending radius
Fixed installation:8×D

Moveable installation:10×D
Operating temperature
Fixed installation: -35℃~+70℃

Movable installation: -20℃~+70℃
Flame resistance
Following IEC60332-1 or 2
