Diesel Locomotive Cable

  • Diesel Locomotive Cable
  • Diesel Locomotive Cable
Diesel Locomotive CableDiesel Locomotive Cable

Diesel Locomotive Cable

  • Diesel Locomotive Cable
  • Product description: Diesel Locomotive Cable is particularly suited to power the traction motors of diesel-electric locomotives. It is also recommended as a portable cable for drilling platforms, onshore or offshore, rail
  • INQUIRY
Diesel Locomotive Cable is particularly suited to power the traction motors of diesel-electric locomotives. It is also recommended as a portable cable for drilling platforms, onshore or offshore, rail and bus lines, electric earthmoving equipment, shipyard applications, arc welder power lines, power and control jumper cables, telecommunications power supplies. In wet or dry places, Diesel Locomotive Cable the maximum continuous conductor temperature for normal operation is 90°C. DLO is resistant to oil, acid, alkali, heat, flame, and abrasion. The cable is suitable for wet or dry areas, conduits, pipes, grooves or trays, and requires excellent electrical performance.

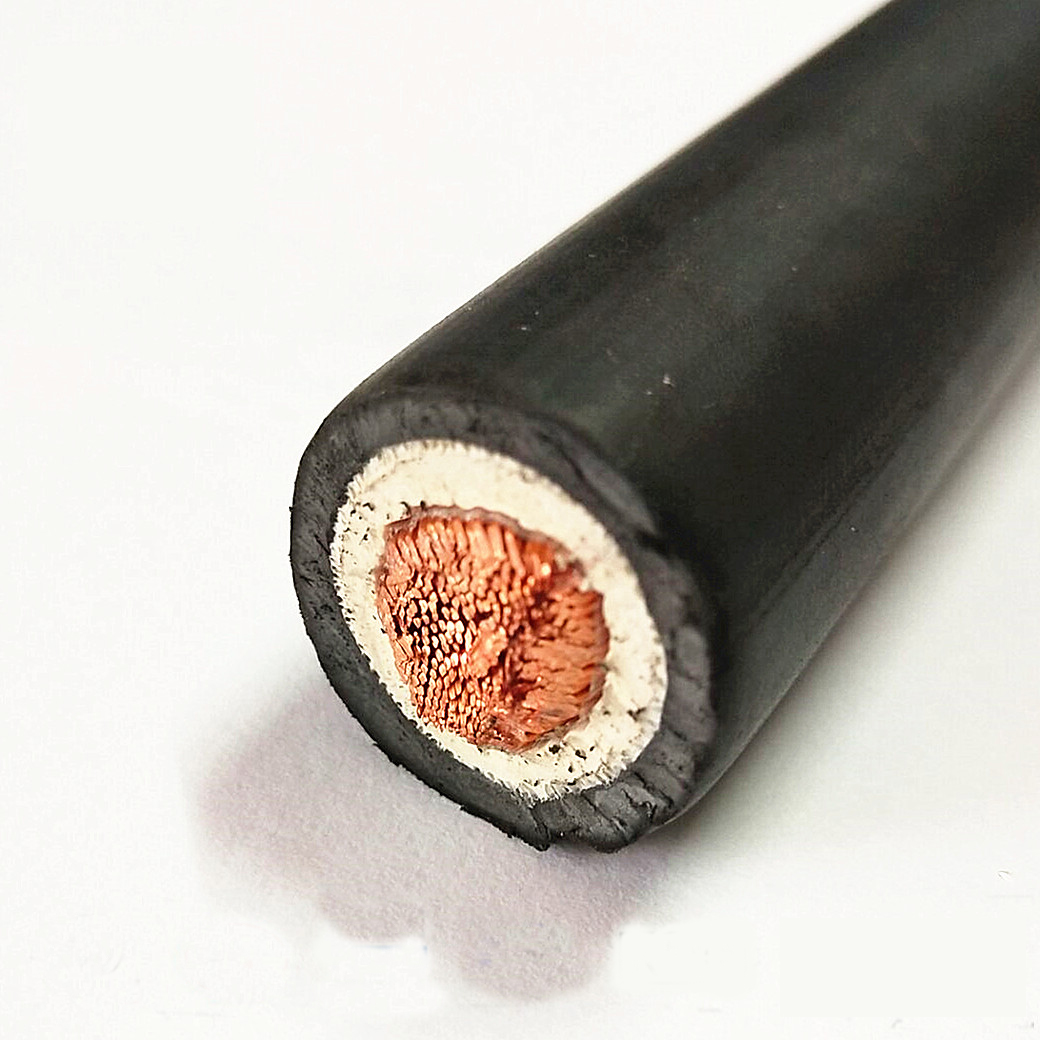

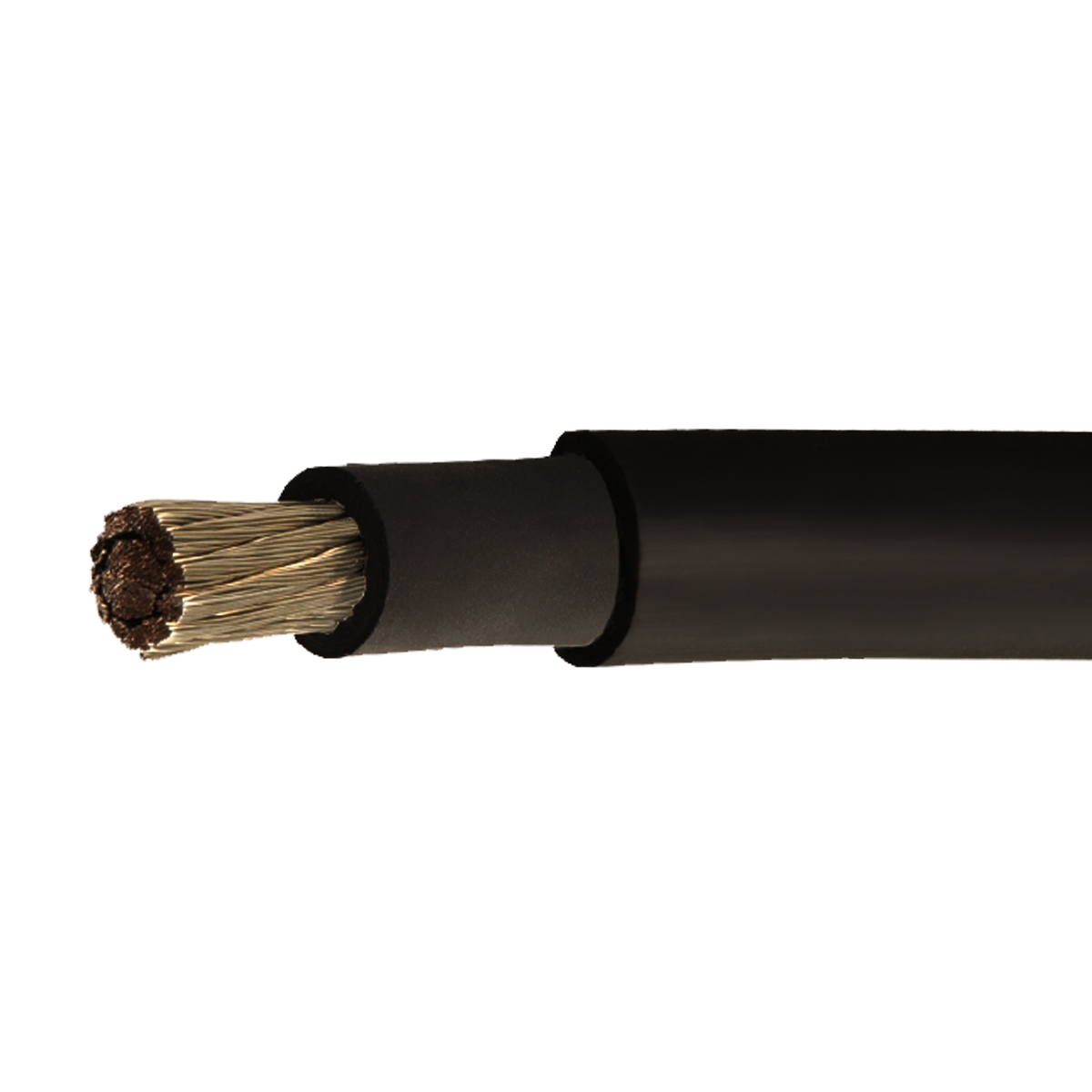

Diesel Locomotive Cable Conductor:
10 AWG through 777.7 kcmil stranded tinned annealed bare copper per AAR 589
Jacket:

Chlorinated polyethylene (CPE), Black

Diesel Locomotive Cable

Diesel Locomotive Cable Applications:
DLO provides maximum performance. Tough enough to withstand daily abuse, temperature extremes and high-stress industrial environment
Diesel electric locomotives
For applications where flexible power leads must be installed in conduit or raceway
Motor leads
Diesel Locomotive Cable Features:
90°C temperature rating
Excellent impact and abrasion resistance
Resists oils, acids, alkalies, heat and flame

Flexible tinned copper stranding
