Flat ribbon cable

fine-wire copper conductor special pvc insulation and sheath copper screened braiding PVC-flat-CY flat ribbon cable TRVVBP

fine-wire copper conductor special pvc insulation and sheath copper screened braiding PVC-flat-CY flat ribbon cable TRVVBP
flat ribbon cable
Product description: fine-wire copper conductor special pvc insulation and sheath copper screened braiding PVC-flat-CY flat ribbon cable TRVVBP is a highly flexible special cable that can be moved back and forth along wit
INQUIRY

fine-wire copper conductor special pvc insulation and sheath copper screened braiding PVC-flat-CY flat ribbon cable TRVVBP is a highly flexible special cable that can be moved back and forth along with the towline and is not easy to wear.flat ribbon cable is called a towline cable, and can also be called a tow cable or a tank chain cable.

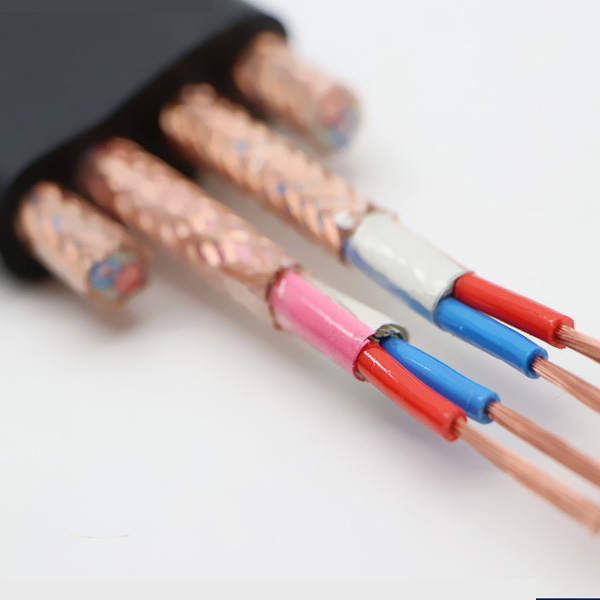

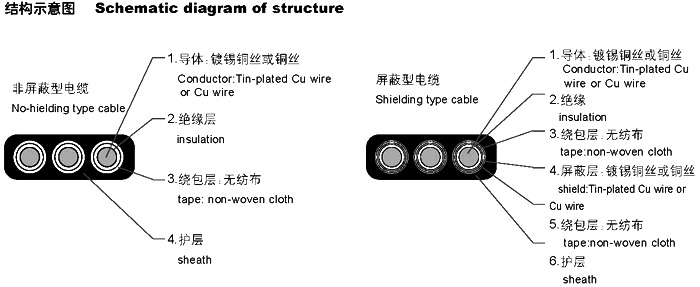

fine-wire copper conductor special pvc insulation and sheath copper screened braiding PVC-flat-CY flat ribbon cable TRVVBP structure:

Conductor: A bare copper wire conductor that is bundled with 99.9999% annealed oxygen-free copper. Conductor structure: in accordance with DIN VDE0295 Class 6.
Core stranding: core wire small pitch twisted composite cable.
Insulation: Insulation of special nitrile composite materials.
TRVVBP cable shielding layer: high-density braided copper wire, shielding coverage of 85%; coating: super-fiber non-woven wrapping, filled with high-grade cotton fiber, making the cable surface smooth and increase tensile strength. Sheath: special sheath for imported nitrile composite flexible cable. In addition, special towline cables can be customized for customers according to their special requirements.
fine-wire copper conductor special pvc insulation and sheath copper screened braiding PVC-flat-CY flat ribbon cable TRVVBP is a flat cable which is wrapped with a strand of copper wire stranded conductor with insulating material and is pressed by a sheathing material through a high-tech automated equipment production line. It has a soft, random bending fold, a relatively thin thickness and a small volume. Easy connection, easy disassembly, etc.
