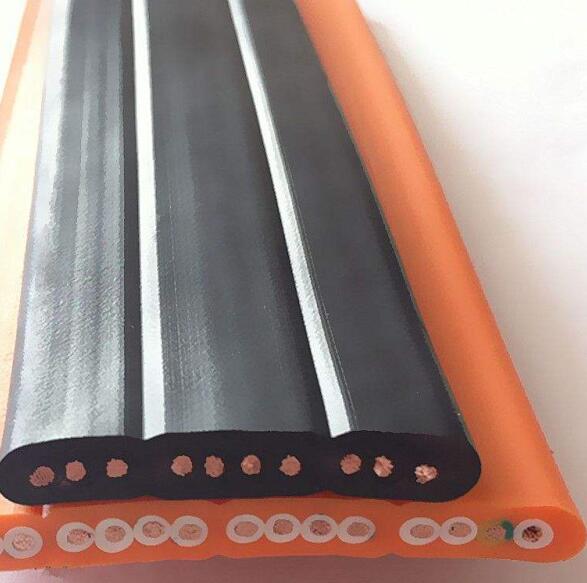

Low temperature resistant cold resistant flat cable is used in environments with extremely low ambient temperatures. It is cold-resistant, soft, wear-resistant, oil-proof and bend-resistant. It maintains its softness even at low ambient temperatures, such as -50 ° C, and is better for mobile use.
Low temperature resistant cold resistant flat cable product parameters:
1. This product has the characteristics of cold resistance, softness, wear resistance and oil resistance;
2. The flat cable has a smaller bending radius than the round cable, saving installation space;
3, multiple cables can be bundled and used in combination;
4. When the core wire is arranged in a single line, the suspension length is >40m. The moving speed is >2m/s. It is recommended to increase the load-bearing steel wire or the spun yarn;
5. When the core wire is twisted and arranged, the suspension length is >80m. The moving speed is >4-10m/s. It is recommended to increase the bearing wire.

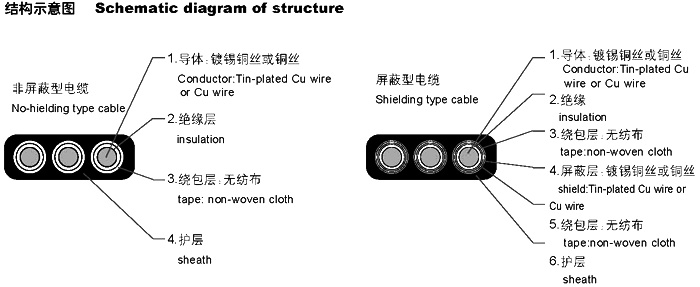

Low temperature resistant cold resistant flat cable structure:
1, conductor: the use of multiple flexible oxygen-free copper wire in accordance with DIN VDE 0295 level 5;
2. Insulation: imported cold-resistant material mixture;
3. Sheath: imported cold-resistant material mixture.
We can customize all kinds of flat cables, such as silicone rubber flat cable, you can check this silicone rubber flat cable Introduction.
