  • Product description: crane flat cable travelling cable is used in cranes, bridge cranes, beam cranes, single beam bridge cranes, double beam bridge cranes, bridge cranes, beam bridge cranes, metallurgical bridge cranes, f
  • INQUIRY
crane flat cable travelling cable is used in cranes, bridge cranes, beam cranes, single beam bridge cranes, double beam bridge cranes, bridge cranes, beam bridge cranes, metallurgical bridge cranes, full gate cranes, half-door Mobile crane, boom crane, cantilever crane, column crane, wall crane, balanced crane, tower crane, portal crane, mobile crane gantry crane, cable crane, carrier bridge, rail crane, gantry crane, Frequent mobile electrical equipment such as port heavy cranes, cranes, cranes, trolleys, transmission machinery, electroplated cranes and various flaw detection equipment.
crane flat cable

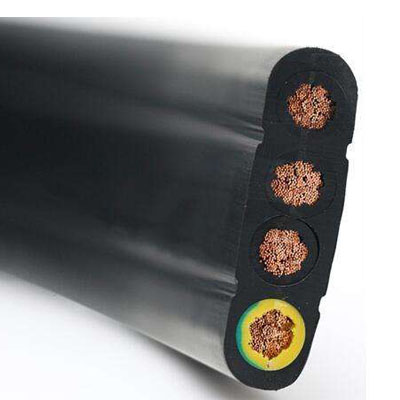

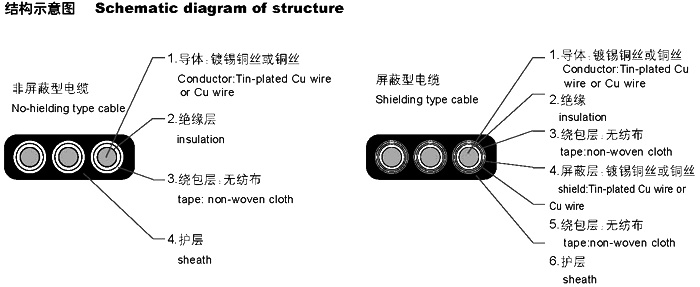

crane flat cable travelling cable structure:

Conductor: Multi-strand stranded filament conductor, in accordance with VDE 0295 and IEC 60288 category 5 conductor

Insulation: special PVC mixture

Core wire: color or coded core wire, 3 cores and above with yellow-green two-color wire (optional)

Black core wire, white digital code, with yellow-green two-color wire

Color core wire with yellow-green two-color wire

Black core wire, white digital coding, without yellow-green two-color wire

Color core wire, without yellow-green two-color wire

Core arrangement: single-line or plum blossom

Reinforcement: Two torsion-free self-supporting soft steel wires, carrying the running tension (optional fiber rope)

Sheath: special PVC compound

Sheath color: black, various colors can be selected according to customer needs


crane flat cable travelling cable characteristics:

The long-term working temperature of the cable should not exceed 70 ° C

Excellent tensile, oil, abrasion, cold and UV resistance

Straight line: free use length is more than 35 meters, moving speed is not more than 4 meters / second

Plum arrangement: free use length is more than 80 meters, moving speed is not more than 10 meters / second

Flame retardancy: self-extinguishing in accordance with IEC 60332-1

Cable technical parameters:

Working voltage: 450 / 750V 0.6 / 1KV

Test cable: 2500V 3500V

Conductor resistance 20 ℃: according to VDE 0295 and IEC 60228 category 5, multi-stranded fine twisted copper wire

Insulation resistance: ≥ 20 MΩ / km (20 ℃)

Minimum bending radius: fixed installation 8 X D (outer diameter of cable)

Mobile installation 10 X D (cable outer diameter)

Working temperature: fixed installation-40 ~ + 70 ℃

Mobile installation-30 ~ + 70 ℃
