Flat ribbon cable

  • strengthen flat crane power cable
  • strengthen flat crane power cable
strengthen flat crane power cablestrengthen flat crane power cable

strengthen flat crane power cable

  • strengthen flat crane power cable
  • flat crane power cable
  • Product description: strengthen flat crane power cable with waterproof, oil, cold resistance, ultraviolet resistance, wear resistance, flame retardant, bending life of more than 5 million times. Smaller than the bending r
  • INQUIRY

strengthen flat crane power cable with waterproof, oil, cold resistance, ultraviolet resistance, wear resistance, flame retardant, bending life of more than 5 million times. Smaller than the bending radius of the round cable, saving installation space.Multiple cables can be used for overlapping and binding. Applicable to power transmission and control cables, widely used in traffic, trolley, transmission machinery and other mobile equipment. Such as metallurgy, electricity, ships, materials Flow conveying system, port machinery. When the core wire is arranged in a single row, the suspension length is >, 40m, and the moving speed is >, 2m/s.
When the core wire is twisted and arranged in plum-flower pattern: the suspension length is > 80m and the moving speed is > 4-10m/s.

strengthen flat crane power cable Technical parameters
Conductor: flexible oxygen free copper wire with multiple strands according to DIN VDE 0295 grade 5
Insulation: high quality oil resistance, flame retardant ding qing mixture, color: color core or coding core, connected rehmann-green core
Jacket: high quality oil resistant, flame retardant dingqing mixture, color: black or gray
Rated voltage: 300/500 V
Test voltage: 2500V
Temperature range: mobile installation: -15℃ ~ +70℃, fixed installation: -30℃ ~ +70℃
Crane flat cable, with the crane equipment is very widely used in port, wharf, station yard, indoor factory, warehouse and other occasions environment, for different occasions, need special Pay attention to the cable material to meet the specific environment of the installation application:
01. Special modified elastomer material sheath: it is mainly applicable to dry or wet conventional indoor and outdoor installation applications, suitable for mobile installation at -15~+70℃;
2. Polyurethane sheath material sheath: the cable is designed with high strength, abrasion resistance, oil resistance, water resistance, acid, alkali, salt spray corrosion resistance, temperature resistance, UV resistance and other excellent properties, especially suitable for complex Installation under harsh working conditions, suitable for -40~+90℃ (mobile installation) temperature range.
Anhui Tiankang (Group) Shares Co., Ltd. Several problems about crane flat cable:
01. Cable core design:
The design structure of the cable is optimized by using one type or plum flower type structure design, and the finished size of the cable is effectively controlled to provide convenience for the installation and laying of the cable.
02. Cable tension:

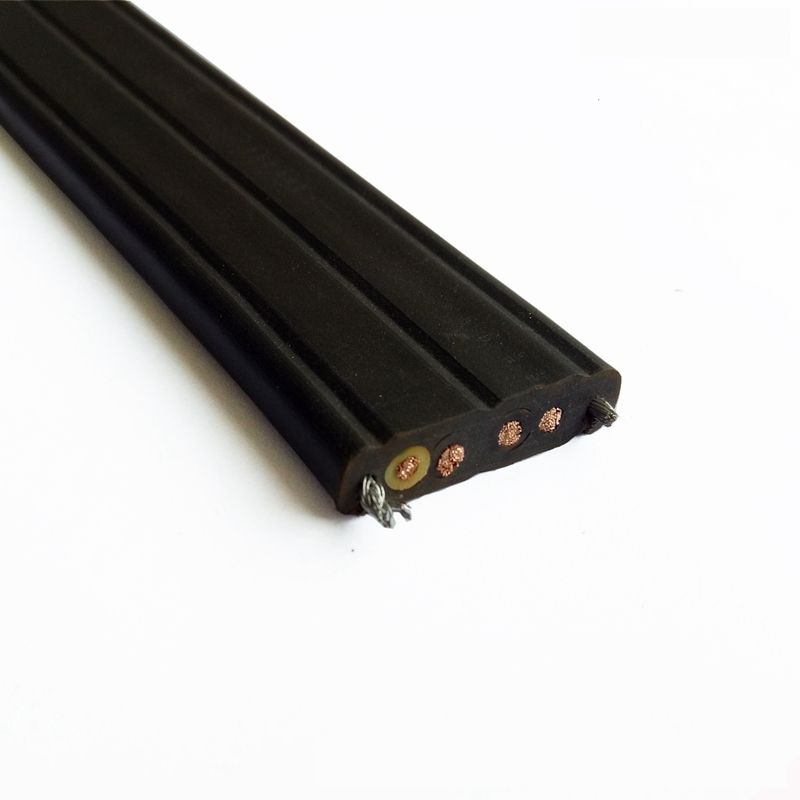

The galvanized tensile steel wire rope is selected as the tensile load bearing element of the cable and placed on both sides of the cable. Flexible tensile reinforced conductor structure can be customized. Crane flat cable, as a crane equipment power connection cable is widely used, soft, tensile, wear resistance, weather resistance and so on is the basic performance of this kind of cable, according to different industrial occasions, can be designed to withstand high temperature, low temperature, oil, water, corrosion and other personalized design products.
